RD45-140

RD45-140 Electrical system Diagram

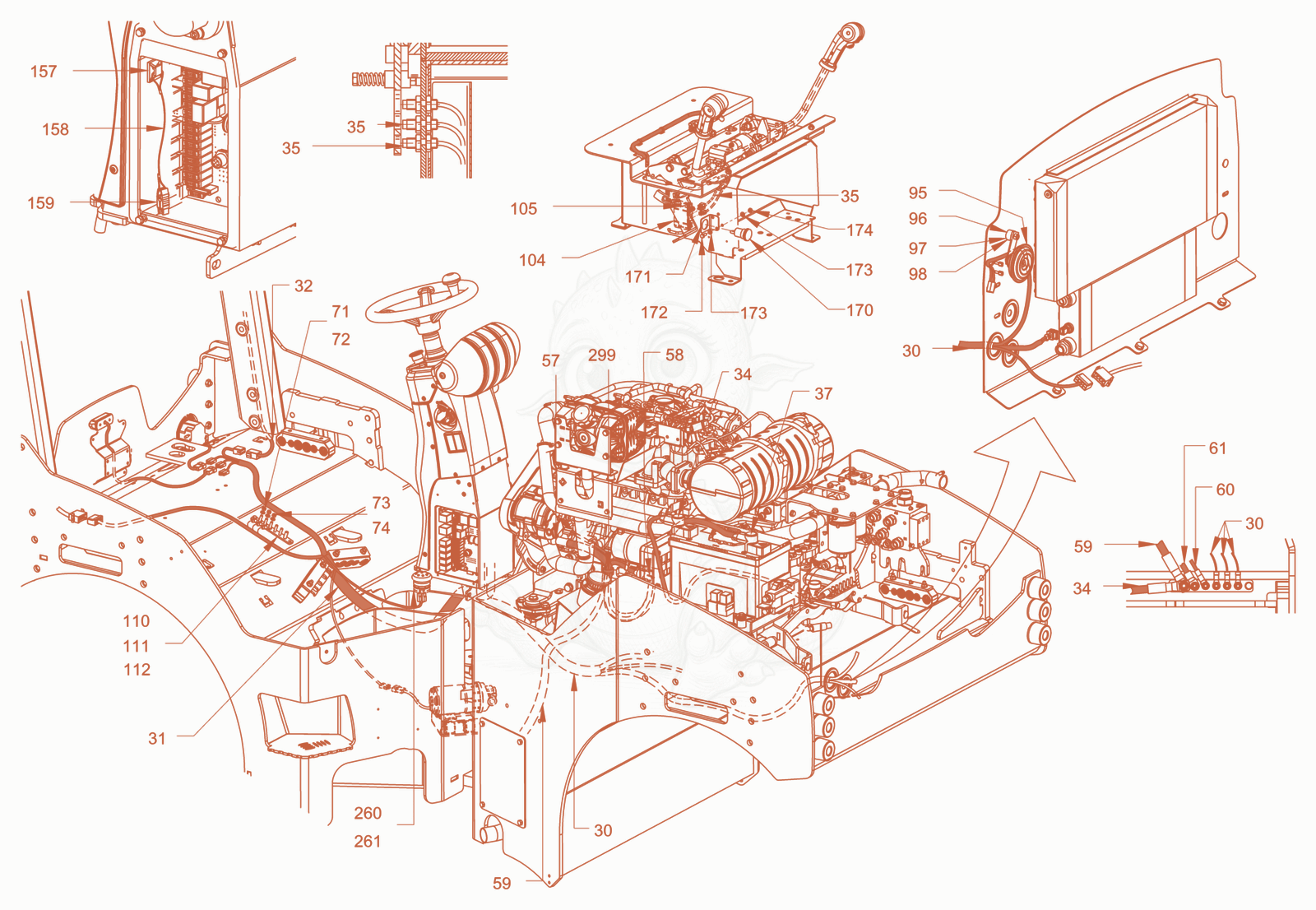

Exploded parts diagram of the Electrical system of a Wacker Neuson RD45-140, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100024940Not stocked
    wire harness (front frame)×1
  • 305100059542Not stocked
    wire harness front frame×1
  • 315100012632
    $996.97
    Wire harness (rear frame) - 5100012632×1
  • 325100012675
    $327.35
    Wire harness - 5100012675×1
  • 345100052973Not stocked
    wire harness negative battery terminal×1
  • 355100012832
    $329.57
    Wire harness - 5100012832×1
  • 355100059507
    $815.82
    proximity switch - 5100059507×1
  • 375100024943Not stocked
    cable harness×1
  • 575100024942Not stocked
    cable harness×1
  • 585100024941Not stocked
    cable harness×1
  • 595100057812Not stocked
    Wire harness engine control unit×1
  • 605100012637
    $98.42
    Wire harness - 5100012637×1
  • 615100024944Not stocked
    cable harness×1
  • 715100011914
    $1.57
    Hexagon nut - 5100011914×5
  • 725100023629
    $1.34
    spring ring - 5100023629×10
  • 735100011915
    $1.57
    Hexagon nut - 5100011915×1
  • 745100011917
    $1.57
    Serrated lock washer - 5100011917×2
  • 955100012321
    $141.03
    Signal horn - 5100012321×1
  • 965100011701
    $12.13
    Distance bush - 5100011701×1
  • 975100035308
    $1.57
    hexagon screw - 5100035308×1
  • 985100012966
    $1.57
    Locking washer - 5100012966×1
  • 1045100012804
    $937.50
    Circuit board - 5100012804×1
  • 1055100013606
    $1.49
    Cheese-head screw - 5100013606×2
  • 1105100011974
    $56.01
    Ground terminal - 5100011974×2
  • 1115100012965
    $3.01
    Locking washer - 5100012965×4
  • 1125100012572
    $20.09
    Hexagon screw - 5100012572×4
  • 1575100011653
    $2.62
    Mounting - 5100011653×1
  • 1585100011590
    $10.60
    Safety cord - 5100011590×1
  • 1595100011632
    $149.93
    Extractor for blade fuses - 5100011632×1
  • 1705100011849
    $50.92
    Built-in socket - 5100011849×1
  • 1715100012093
    $28.18
    Metal plate - 5100012093×1
  • 1725100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 1735100012965
    $3.01
    Locking washer - 5100012965×4
  • 1745100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 2605100013650
    $373.29
    Foot switch - 5100013650×1
  • 2615100012890
    $1.57
    Countersunk screw - 5100012890×2
  • 2995100013573
    $1.49
    Wire fastener - 5100013573×50
