RD45-140

RD45-140 Electrical system Diagram

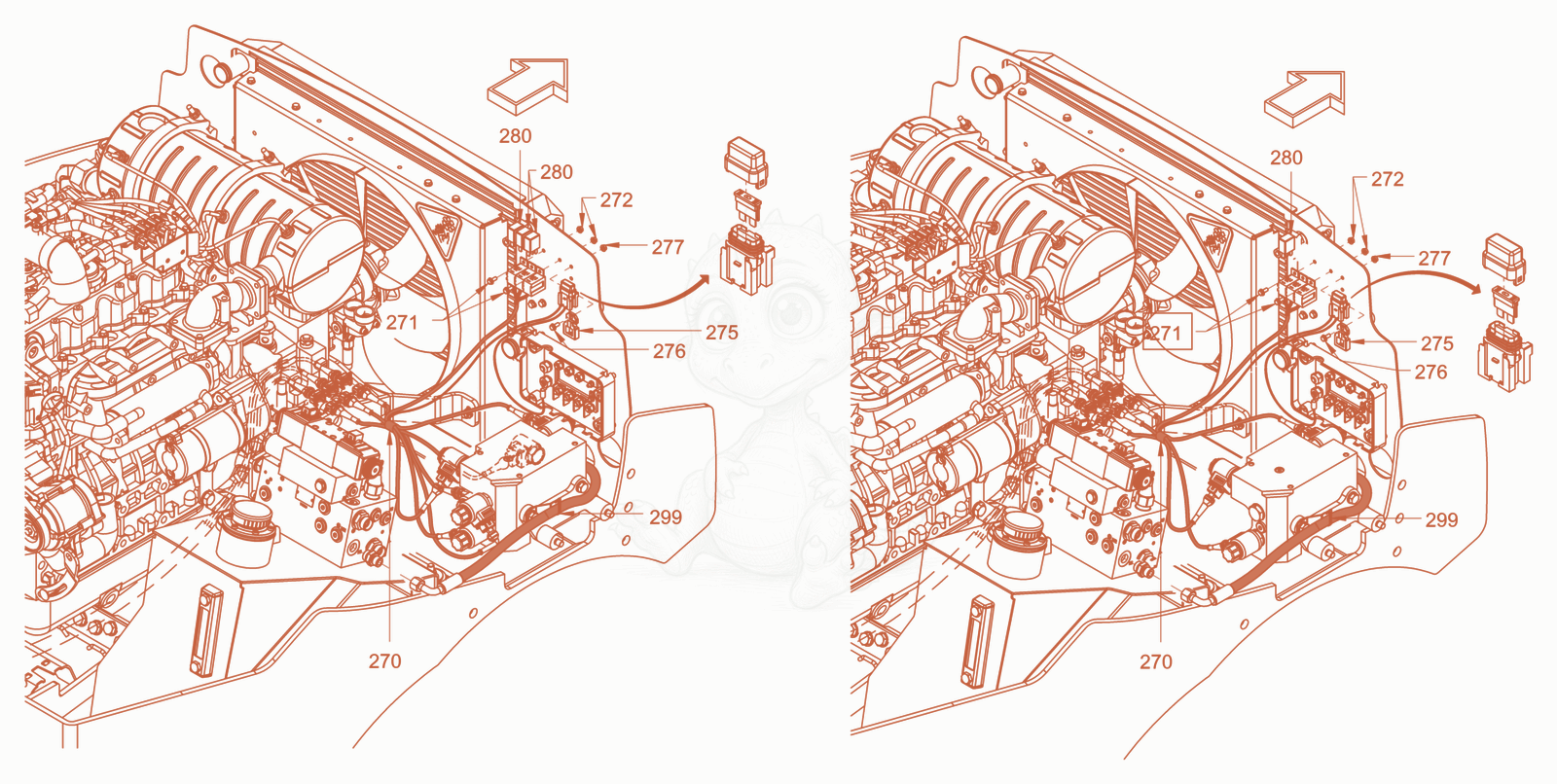

Exploded parts diagram of the Electrical system of a Wacker Neuson RD45-140, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2705100057814Not stocked
    Cable harness×1
  • 2715100012587
    $1.84
    Safety screw - 5100012587×2
  • 2725100052986Not stocked
    hexagonal nut×2
  • 2755100023158
    $4.15
    attachement plate - 5100023158×1
  • 2765100012587
    $1.84
    Safety screw - 5100012587×1
  • 2775100052986Not stocked
    hexagonal nut×1
  • 2805100011583
    $45.65
    Relay - 5100011583×3
  • 2805100011583
    $45.65
    Relay - 5100011583×1
  • 2995100013573
    $1.49
    Wire fastener - 5100013573×50
