RD45-140 O Tandem Roller

RD45-140OUS additional lighting, rops Diagram

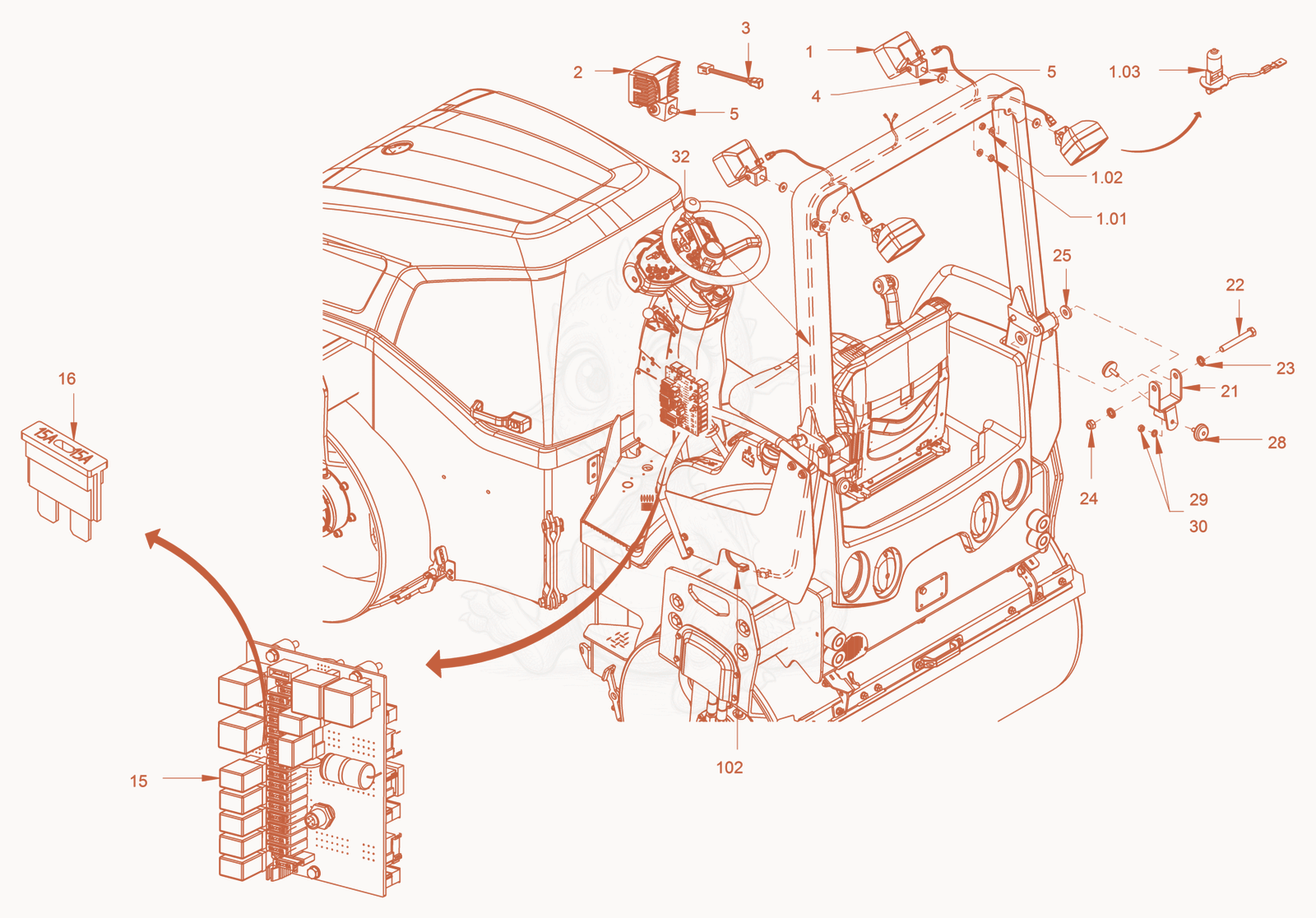

Exploded parts diagram of the additional lighting, rops of a Wacker Neuson RD45-140OUS, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100011606
$494.96
Working light - 5100011606×4
15100012182Not stocked
Hexagon nut×1
15100012939
$1.57
Washer - 5100012939×1
15100013554
$44.65
Lamp - 5100013554×1
25100024915
$1,211.19
working light - 5100024915×4
35100024918
$37.63
cable harness - 5100024918×4
45100013128
$1.09
Washer - 5100013128×4
55100023419
$3.32
hexagon screw - 5100023419×4
155100011583
$45.65
Relay - 5100011583×1
165100013580
$1.83
Blade fuse - 5100013580×1
215100016277
$111.21
stop - 5100016277×2
225100011504
$10.00
Hexagon screw - 5100011504×2
235100012969
$3.15
Locking washer - 5100012969×4
245100012603
$2.40
Safety nut - 5100012603×2
285100013377
$45.91
Rubber buffer - 5100013377×4
295100012967
$1.57
Locking washer - 5100012967×4
305100012547
$1.49
Hexagon nut - 5100012547×4
325100012675
$327.35
Wire harness - 5100012675×1
1025100012632
$996.97
Wire harness (rear frame) - 5100012632×1
