RD45-140 O Tandem Roller

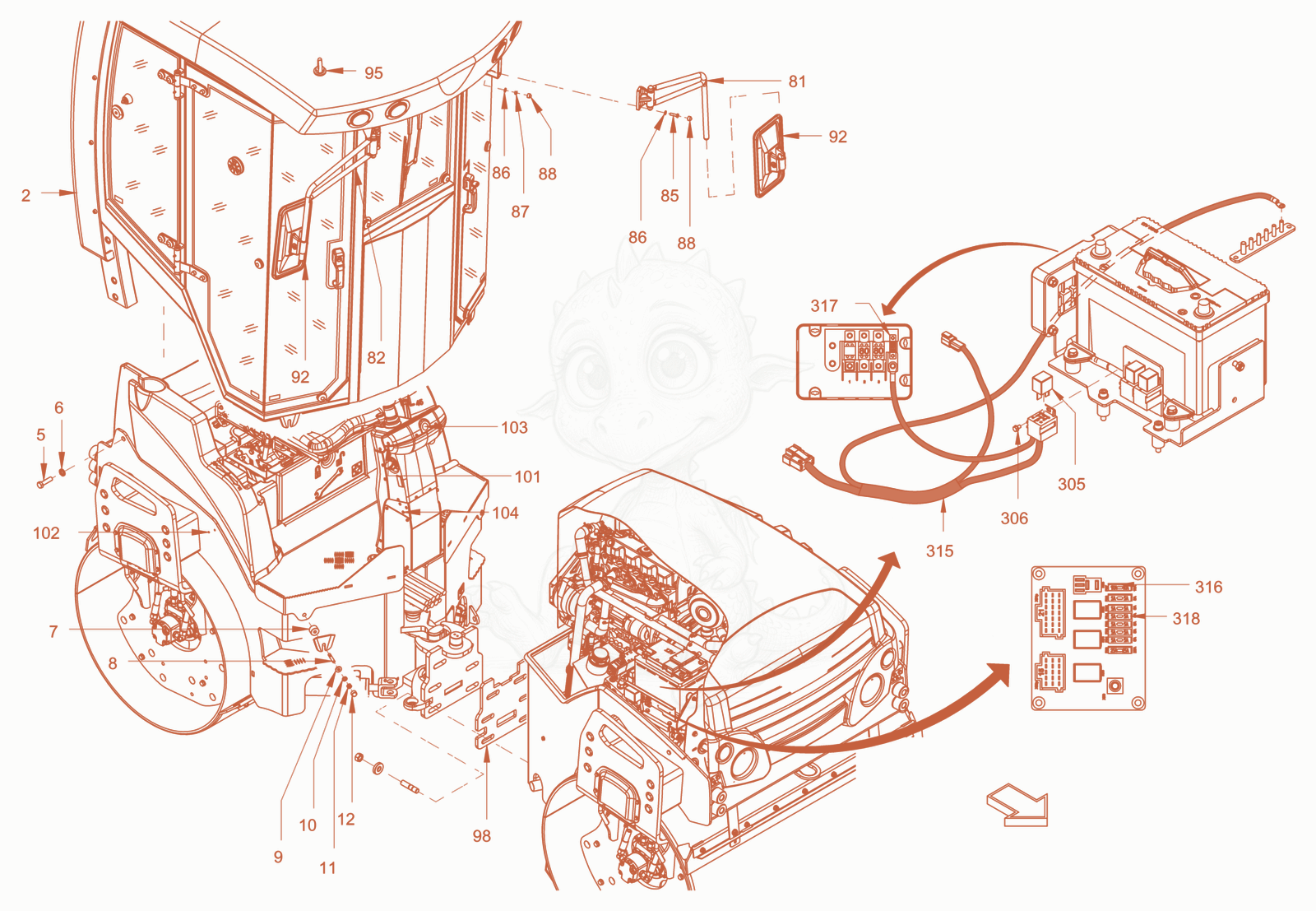

RD45-140OUS driver's cabin Diagram

Exploded parts diagram of the driver's cabin of a Wacker Neuson RD45-140OUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100013136
    $91,996.41
    Driver's cabin - 5100013136×1
  • 55100012526
    $5.15
    Hexagon screw - 5100012526×2
  • 65100012969
    $3.15
    Locking washer - 5100012969×2
  • 75100013350Not stocked
    Spacer block×2
  • 85100013174
    $59.93
    Stud bolt - 5100013174×2
  • 95100013128
    $1.09
    Washer - 5100013128×2
  • 105100012967
    $1.57
    Locking washer - 5100012967×2
  • 115100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 125100035325
    $1.57
    protective cap - 5100035325×2
  • 815100011539
    $342.43
    Stay bar - 5100011539×1
  • 825100011540
    $332.25
    Stay bar - 5100011540×1
  • 855100013510
    $1.57
    Hexagon screw - 5100013510×4
  • 865100012966
    $1.57
    Locking washer - 5100012966×8
  • 875100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 885100013572
    $1.49
    Protecting cap - 5100013572×8
  • 925100011541
    $265.07
    Mirror - 5100011541×2
  • 955100039071Not stocked
    Hexagon Screw×4
  • 985100013198Not stocked
    Spacer plate×1
  • 1015100012493
    $1.49
    Filler cap - 5100012493×2
  • 1025100013530
    $1.57
    Filler cap - 5100013530×4
  • 1035100012501Not stocked
    Filler cap×1
  • 1045100011656
    $1.49
    Filler cap - 5100011656×6
  • 3055100011633
    $433.64
    Relay - 5100011633×1
  • 3065100013594
    $3.88
    Safety screw - 5100013594×2
  • 3155100013144Not stocked
    Wire harness×1
  • 3165100013579
    $1.83
    Blade fuse - 5100013579×1
  • 3175100011640
    $17.81
    Blade fuse - 5100011640×1
  • 3185100013586
    $0.72
    Blade fuse - 5100013586×1
