RD45-140 O Tandem Roller

RD45-140OUS electrical system Diagram

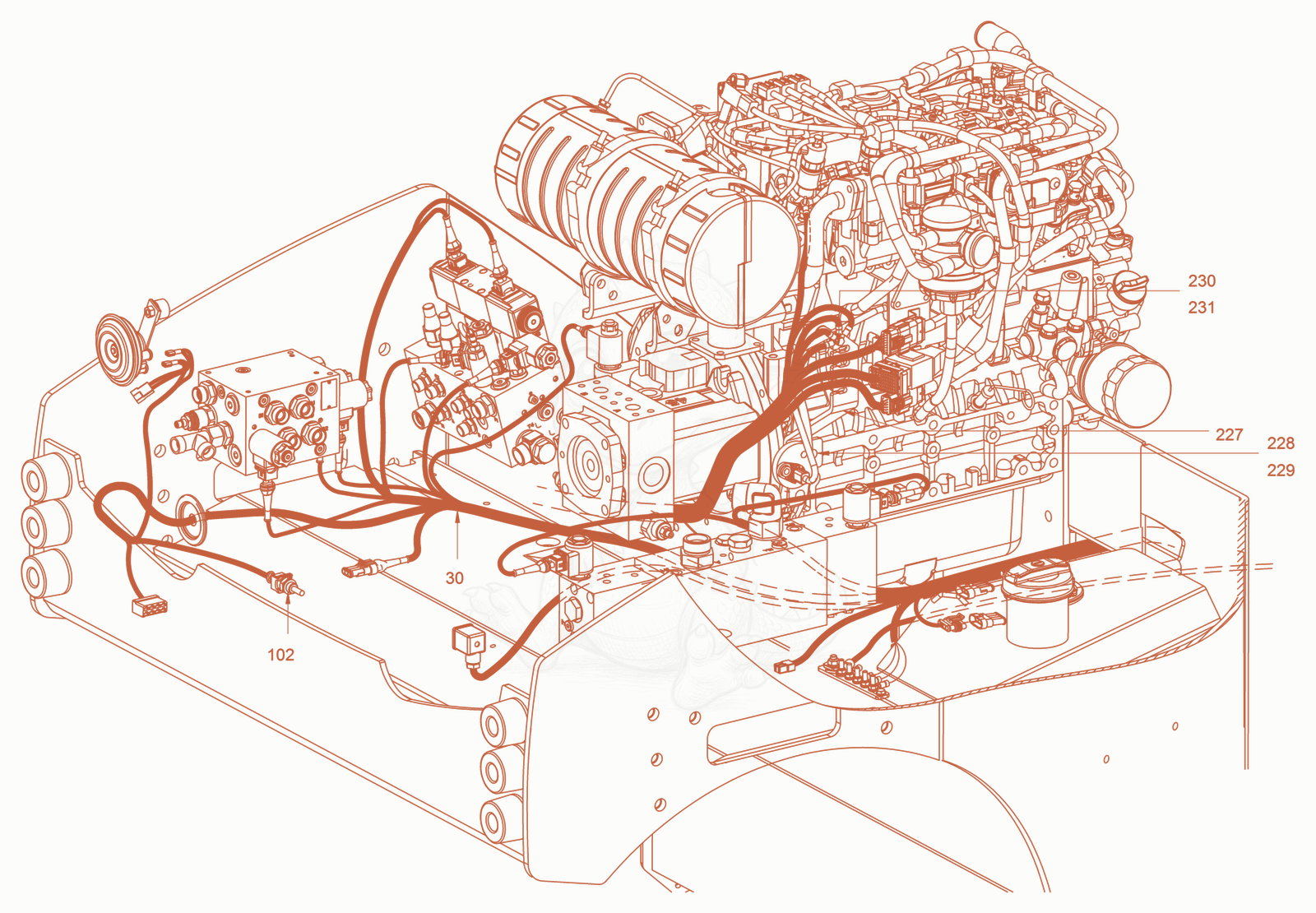

Exploded parts diagram of the electrical system of a Wacker Neuson RD45-140OUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100024940Not stocked
    wire harness (front frame)×1
  • 1025100023402
    $95.57
    temperature switch - 5100023402×1
  • 2275100024974Not stocked
    holder×1
  • 2285100012968
    $1.57
    Locking washer - 5100012968×2
  • 2295100012627
    $1.44
    Hexagon screw - 5100012627×2
  • 2305100024990Not stocked
    hexagon screw×1
  • 2315100023629
    $1.34
    spring ring - 5100023629×1
