RD45-140 O Tandem Roller

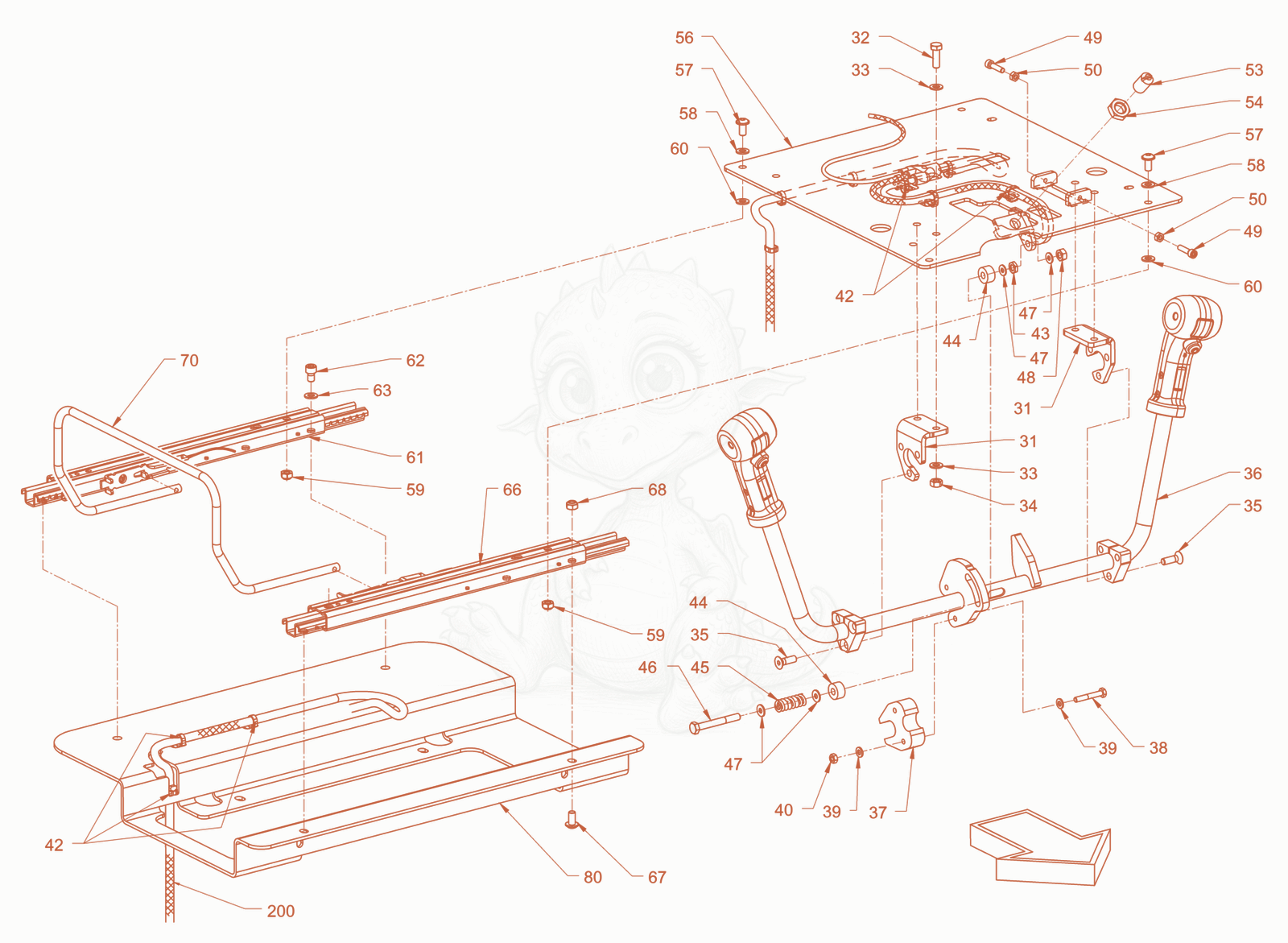

RD45-140OUS drive shifting Diagram
- Metal plate - 5100011900×2
- Hexagon screw - 5100012613×4
- Locking washer - 5100012966×8
- Hexagon nut - 5100012546×4
- countersunk screw - 5100048707×6
- Drive lever - 5100012836×1
- Shift claw - 5100011904×1
- Hexagon screw - 5100013466×2
- Locking washer - 5100012965×4
- Hexagon nut - 5100012545×2
- Wire fastener - 5100013573×10
- Hexagon nut - 5100013537×1
- Distance bush - 5100011791×2
- Compression spring - 5100011819×1
- hexagon screw - 5100040596×1
- Locking washer - 5100012966×4
- Safety nut - 5100011476×1
- Cheese-head screw - 5100013189×2
- Hexagon nut - 5100012545×2
- Spring-thrust piece - 5100013166×1
- Hexagon nut - 5100013400×1
- Seat pedestal - 5100011901×1
- Hexagon screw - 5100012515×4
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×4
- Washer - 5100013421×4
- Adjustment bar - 5100011962×1
- Cheese-head screw - 5100013401×2
- Locking washer - 5100013441×2
- Adjustment bar - 5100012041×1
- Fillister head screw - 5100011869×2
- Hexagon nut - 5100012546×2
- Rod steel - 5100012073×1
- Seat pedestal - 5100011997×1
- Wire harness - 5100012638×1
