RD7Hehf

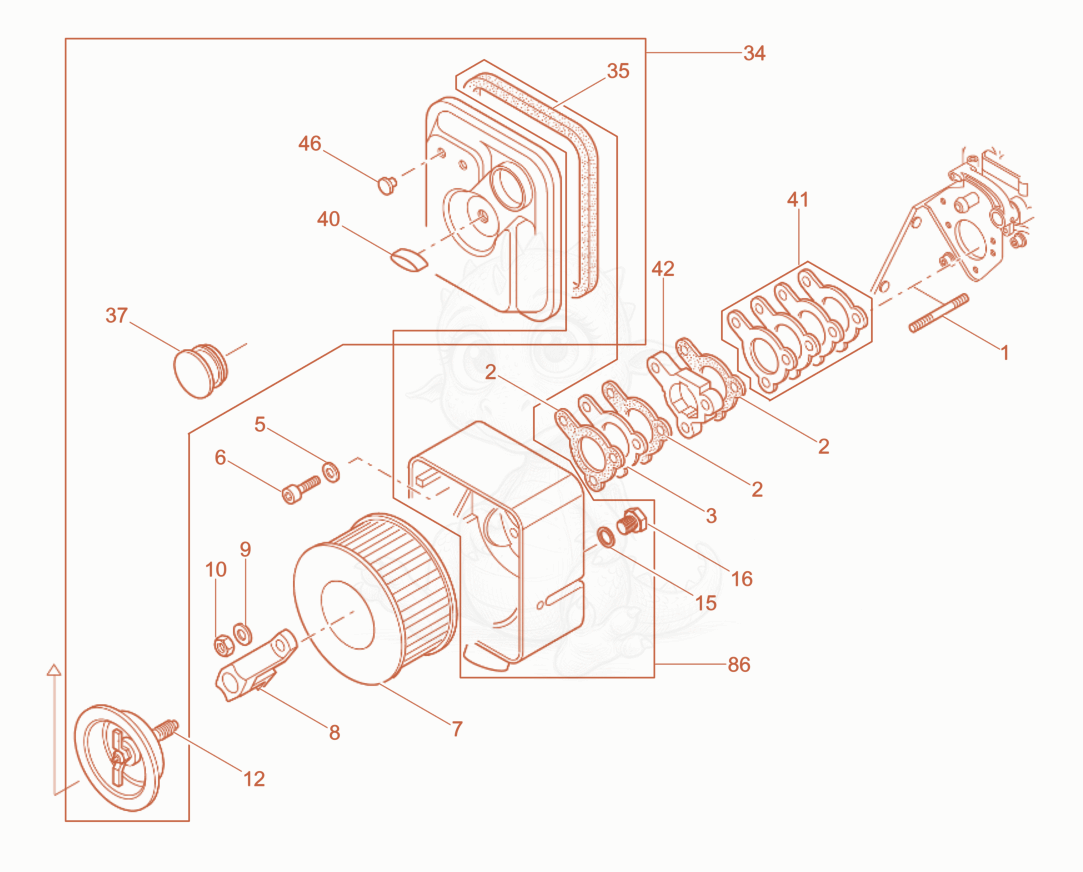

RD7HEHF Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson RD7HEHF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000207815
    $11.94
    STUD M8 X 60 - 5000207815×2
  • 25000104452
    $7.02
    Seal - 5000104452×3
  • 35000104453
    $17.38
    FLANGE-INSULATING - 5000104453×1
  • 55200022048Not stocked
    Spring washer×1
  • 65000202425
    $4.21
    SCREW-ALLEN,M8 X 42 - 5000202425×1
  • 75000104455
    $26.04
    FILTER-AIR - 5000104455×1
  • 85000104456
    $44.55
    Retainer - 5000104456×1
  • 95000151553
    $7.71
    WASHER-FLAT 8.4 ST A3C - 5000151553×2
  • 105000129516
    $8.06
    NUT M8,HEX - 5000129516×2
  • 125100002773
    $111.80
    Filter Cover cpl. - 5100002773×1
  • 155000107342
    $8.06
    RING-SEALING - 5000107342×1
  • 165000202431
    $11.94
    SCREW M8 X 1 - 5000202431×1
  • 345100002775
    $219.81
    Cover - 5100002775×1
  • 355000104458
    $28.66
    Seal - 5000104458×1
  • 375100060771Not stocked
    Cover×1
  • 405100060784Not stocked
    Nut×1
  • 415000104450
    $14.34
    SET-GASKET - 5000104450×1
  • 425000104451
    $38.06
    FLANGE-INTERMEDIATE - 5000104451×1
  • 465100060781Not stocked
    Locking Plug×2
  • 865000104454
    $208.47
    Housing - 5000104454×1
