RD7Hehf

RD7HEHF Coupling housing Diagram

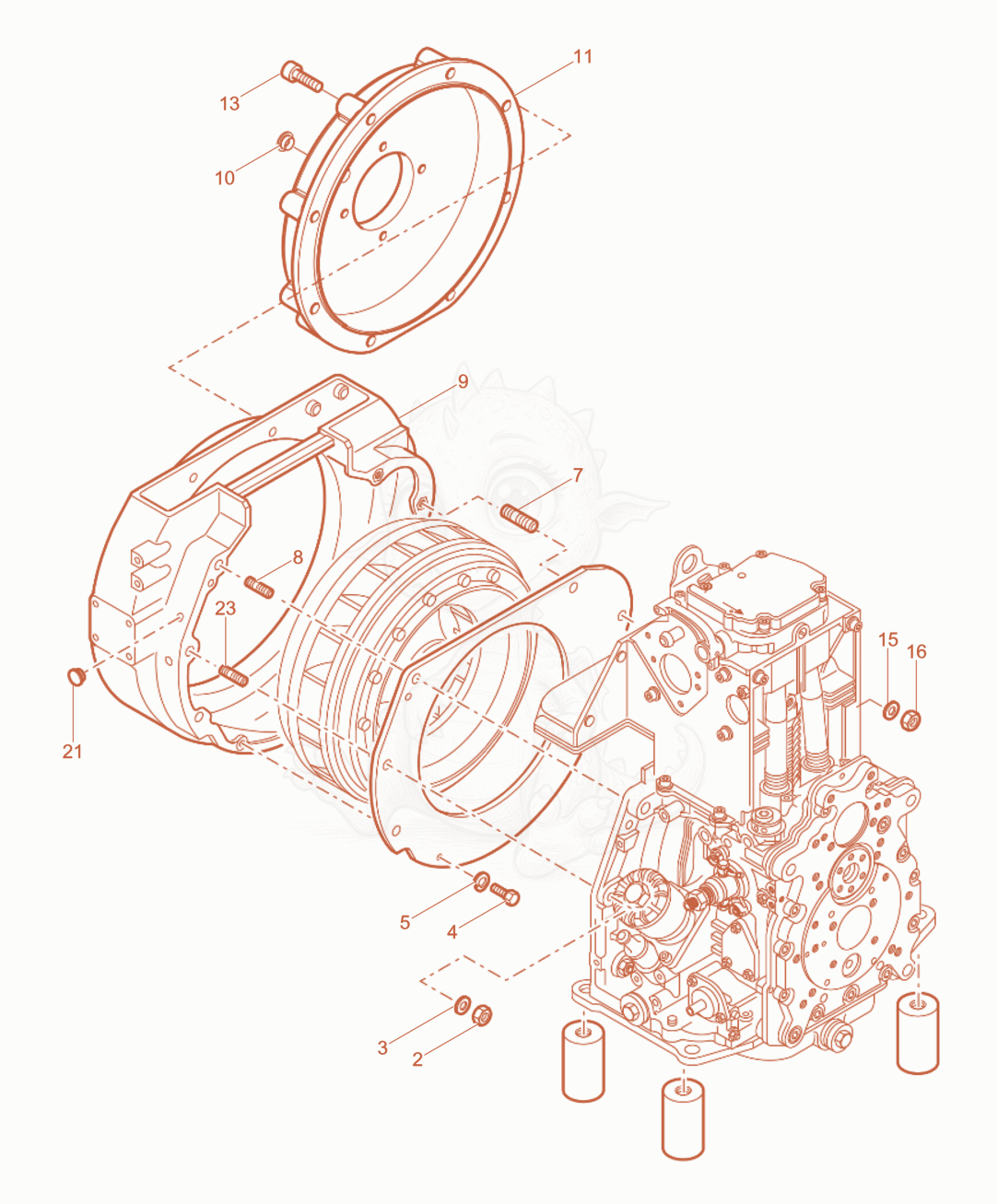

Exploded parts diagram of the Coupling housing of a Wacker Neuson RD7HEHF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000207819
    $8.06
    NUT M10,HEX - 5000207819×4
  • 35000202434
    $8.06
    WASHER-10.5 - 5000202434×4
  • 45000202338
    $8.06
    SCREW M6 X 16 DIN933,HEX - 5000202338×2
  • 55000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×2
  • 75000203131
    $16.49
    STUD M12 X 50 - 5000203131×2
  • 85000207816
    $8.06
    STUD M10 X 35 - 5000207816×3
  • 95000104425
    $785.20
    HOUSING-FLYWHEEL - 5000104425×1
  • 105100060782Not stocked
    Locking Plug×1
  • 115100060796Not stocked
    Housing×1
  • 135000202424
    $8.06
    SCREW-ALLEN,M10 X 60 - 5000202424×8
  • 155000203132
    $8.06
    washer A13 - 5000203132×2
  • 165000097428
    $8.06
    NUT - 5000097428×2
  • 215000207605
    $8.06
    PLUG - 5000207605×2
  • 235000207817
    $11.94
    STUD M10 X 45 - 5000207817×1
