RD7Yehfb HRC

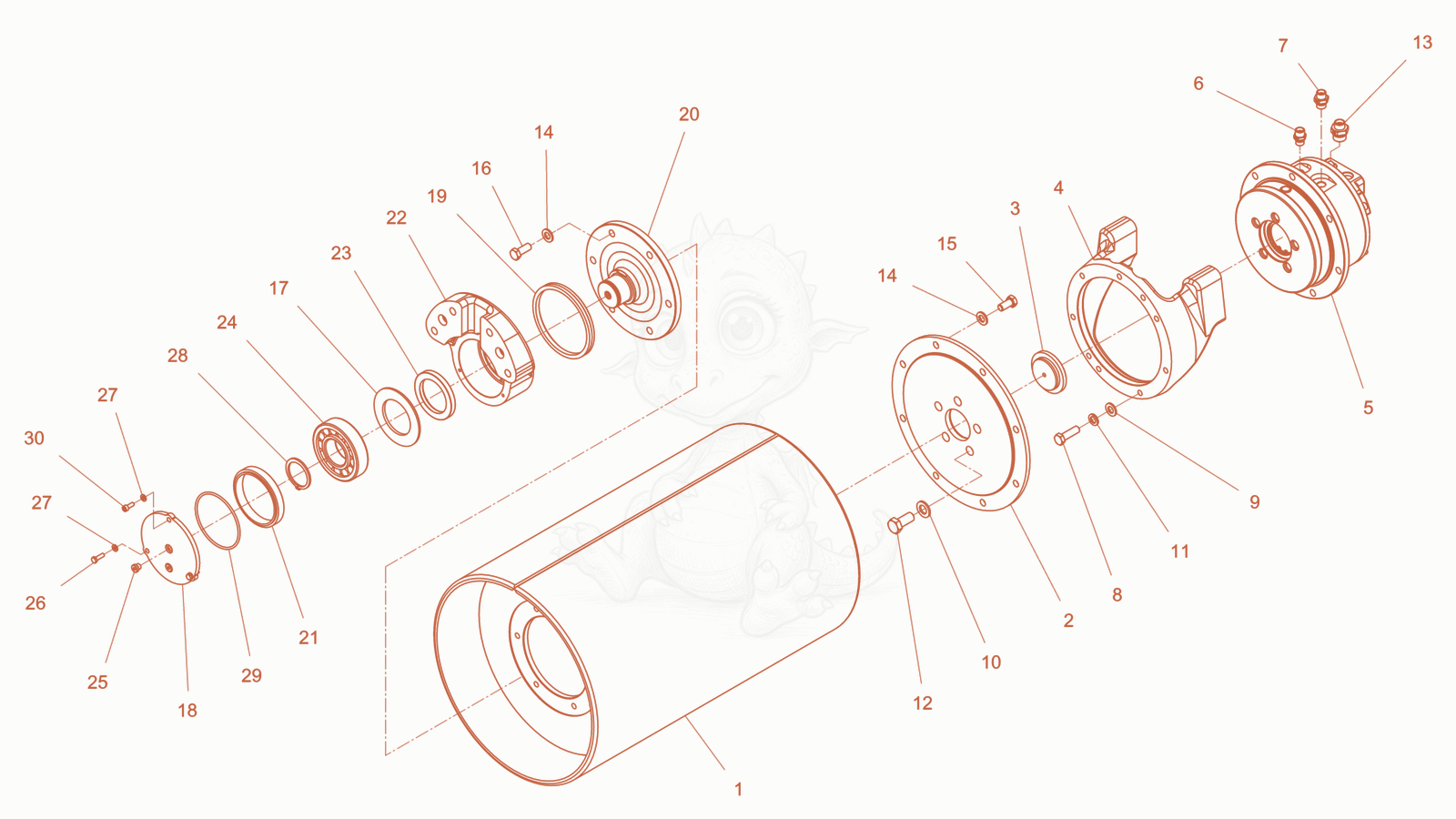

RD7YEHFBHRC Drum cpl. (back) Diagram
- Drum - 5100006584×1
- 25100006932Not stockedFlange×1
- Centering ring - 5100006600×1
- Bracket - 5100006581×1
- Hydraulic motor (with break) - 5100006469Unknown×1
- 55100007604Not stockedGasket set×1
- Male stud connector - 5100006568×1
- Male stud connector - 5100006570×1
- Hexhead screw - 5100006615×7
- Washer - 5100006538×7
- Washer - 5100006552×5
- Spring washer - 5100006625×7
- Hexhead screw - 5100006675×5
- Male stud connector - 5100006569×2
- Washer - 5100006538×14
- Hexhead screw - 5100006616×8
- Hexhead screw - 5100006557×6
- Spacing ring - 5100006602×1
- Cover - 5100006608×1
- V-ring VA 120 - 5100006633×1
- Bolt - 5100006582×1
- Sealing ring - 5100006601×1
- Housing - 5100006585×1
- Rotary shaft seal WA 65x90 - 5100006594×1
- Cylindrical roller bearing - 5100006593×1
- Plug - 5100006628×2
- Hexhead screw - 5100006529×2
- Washer - 5100006546×3
- Retaining ring 50x3 - 5100006634×1
- O-ring 101,1x3,53 - 5100006549×1
- Cyl. Head screw - 5100006626×1
