RD7Yehfb HRC

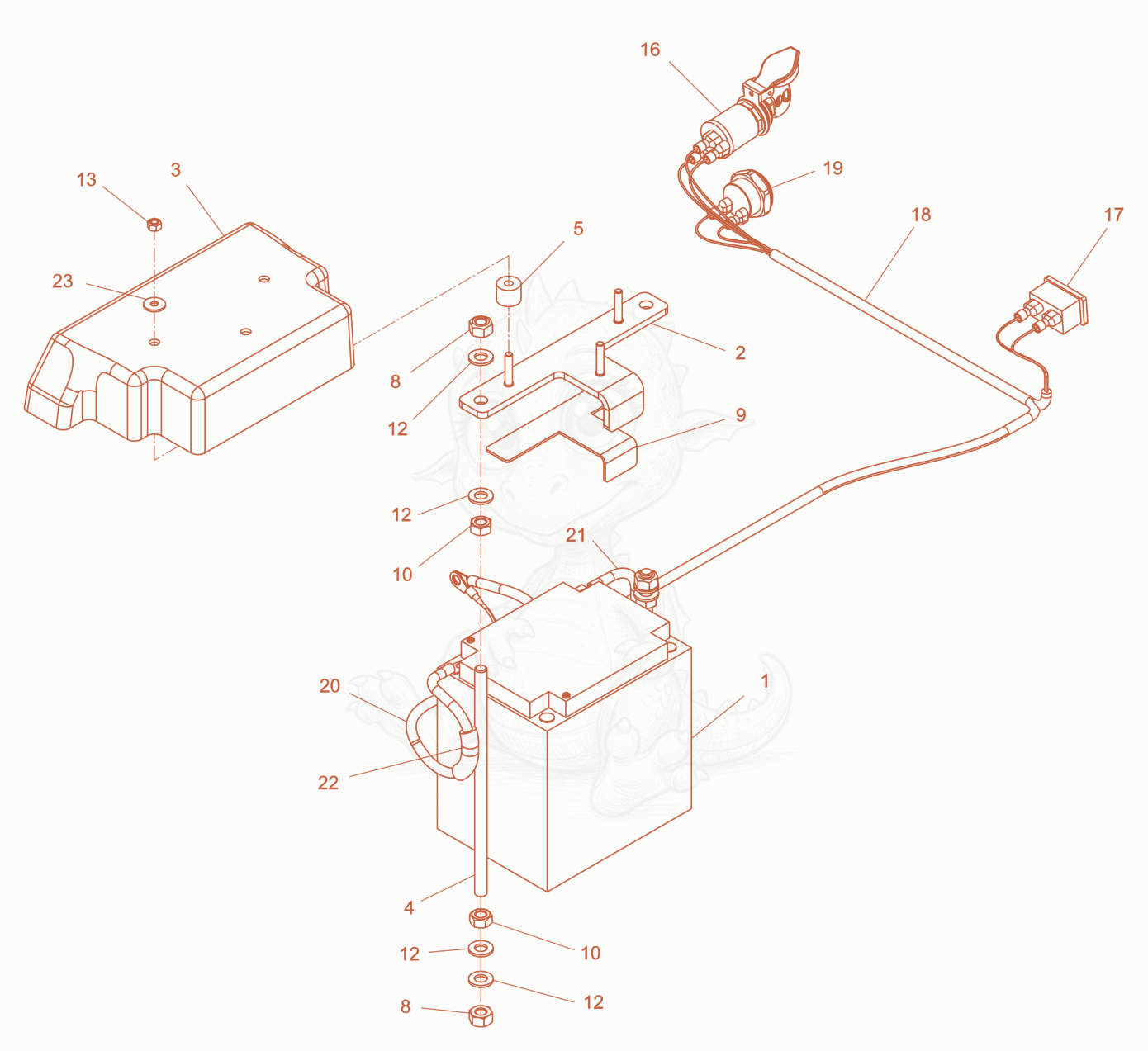

RD7YEHFBHRC Wire harness - Working hour meter Diagram
- Battery - 5100006731×1
- Bracket - 5100006772×1
- Battery cover - 5100006777×1
- Thread rod - 5100006771×2
- Distance washer - 5100006773×3
- Nut - 5100006544×4
- Rubber insert 2 - 5100006732×1
- Nut - 5100006563×4
- Washer - 5100006551×8
- Nut - 5100006542×3
- Washer - 5100006546×2
- Ignition switch - 5100006721×1
- Working hour meter - 5100006532×1
- Electric harness - 5100006672×1
- Acoustic signal - 5100006722×1
- Battery cable 400 - 5100006776×1
- Battery cable 300 Yanmar - 5100006921×1
- Protective sleeve 7-10mm - 5100006524×0.05
- Washer 6,4 - 5100006920×3
