RD7Yehfb HRC

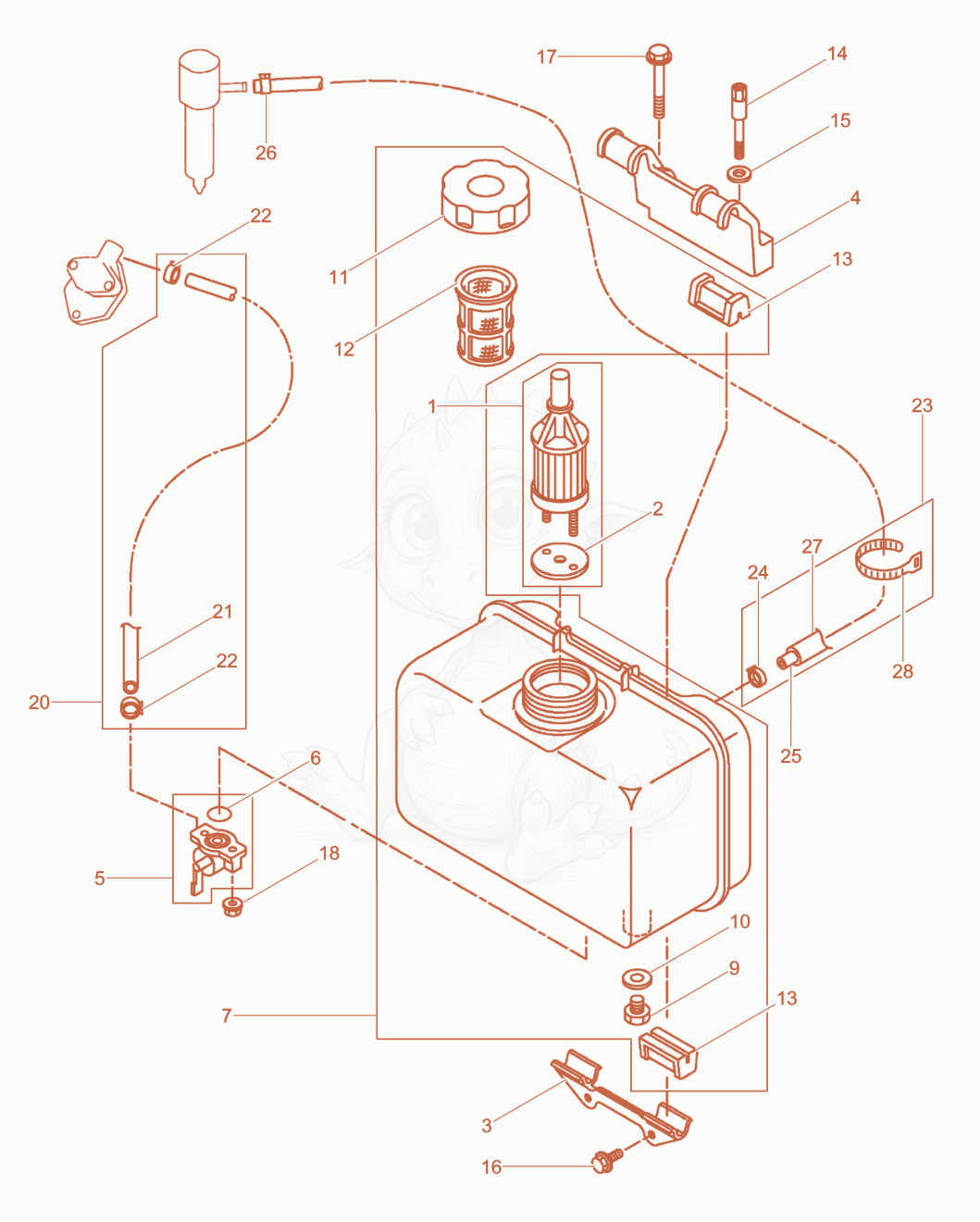

RD7YEHFBHRC Fuel Tank, Fuel Pipes Diagram
- fuel filter - 5000217895×1
- seal - 5000073746×1
- Bracket - 5000217876×1
- BRACKET-TANK,LOWER - 5100031898×1
- Fuel cock cpl. - 5100059739×1
- o-ring - 5000153986×1
- Tank cpl. - 5100059740×1
- DRAIN PLUG - 5000213242×1
- GASKET - 5000119882×1
- CAP-ASSY,FUEL TANK - 5000213241×1
- Fuel filter - 5100059741×1
- Shockmount - 5100059743×4
- Bolt - 5000217878×1
- washer - 5000085567×1
- SCREW M6 X 16,HX.FLANGE - 5000073659×2
- SCREW M8 X 45,HEX.FLANGE - 5000085536×1
- NUT-M6 - 5000119722×2
- PIPE ASSY,FUEL OIL - 5000210560×1
- HOSE-FUEL OIL - 5000119891×1
- Clamp - 5000217931×2
- 235100059744Not stockedFuel Pipes cpl.×1
- Clamp - 5000073714×1
- 255100059745Not stockedFuel Pipe×1
- Clamp - 5100000762×1
- 275100059746Not stockedProtective hose×1
- Clamp - 5000217929×1
