RS800A Single Vibratory Roller

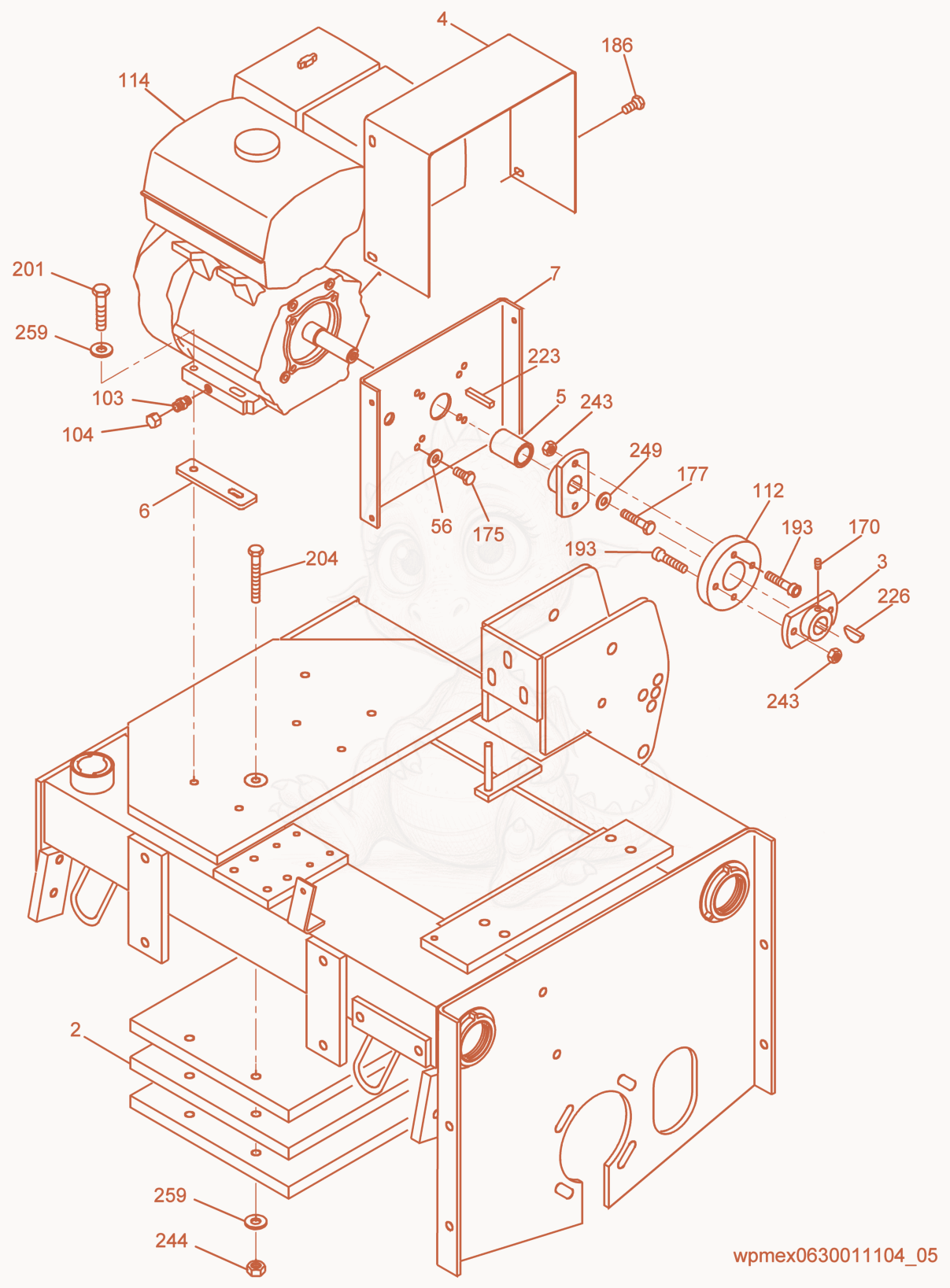

RS800A Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson RS800A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000072631
    $86.57
    PLATE-COUNTER WEIGHT - 5000072631×3
  • 35000072130
    $491.91
    COUPLING-ROLLER DRIVE - 5000072130×2
  • 45000075465
    $51.43
    COVER-ENGINE COUPLING - 5000075465×1
  • 55000080004
    $24.86
    SPACER-SHAFT - 5000080004×1
  • 65000402798Not stocked
    Spacer×2
  • 75000086961
    $87.95
    PLATE-ENGINE FACE P-5000112006 - 5000086961×1
  • 1035000080769
    $14.11
    FITTING-ADPTR,5M12F80MXS PLCAP - 5000080769×1
  • 1045000080770Not stocked
    Fitting×1
  • 1125000073150
    $69.41
    COUPLING-FLEXIBLE,RUBBER - 5000073150×1
  • 1145000405543
    $1,254.84
    Engine-Honda,GX340UT2QAP2 - 5000405543×1
  • 1705000052444
    $0.48
    SCREW-SET 1/4-20 X 1/4,KNURLED - 5000052444×4
  • 1755000052203
    $0.19
    SCREW 5/16-24 X 7/8 GR5,HX.HD. - 5000052203×4
  • 1775000025567
    $9.99
    SCREW 3/8-24 X 1 GR5,HX.LOCK - 5000025567×1
  • 1865000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×4
  • 1935000011538
    $1.80
    SCREW M8 X 45 SOC.HD. - 5000011538×4
  • 2015000011319
    $0.52
    SCREW M10 X 45 HX.HD - 5000011319×4
  • 2045000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×4
  • 2235000052027
    $0.35
    KEY-SQUARE 1/4 X 7/8 - 5000052027×1
  • 2265000027805
    $1.07
    KEY-WOODRUFF 1/4 X 1,#150 - 5000027805×1
  • 2415000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 2435000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 2445000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 2495000010666
    $0.61
    WASHER 12 FLAT - 5000010666×1
  • 2565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 2595000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×8
