RTLx-SC3 TRENCH ROLLER,EU,WH/BL

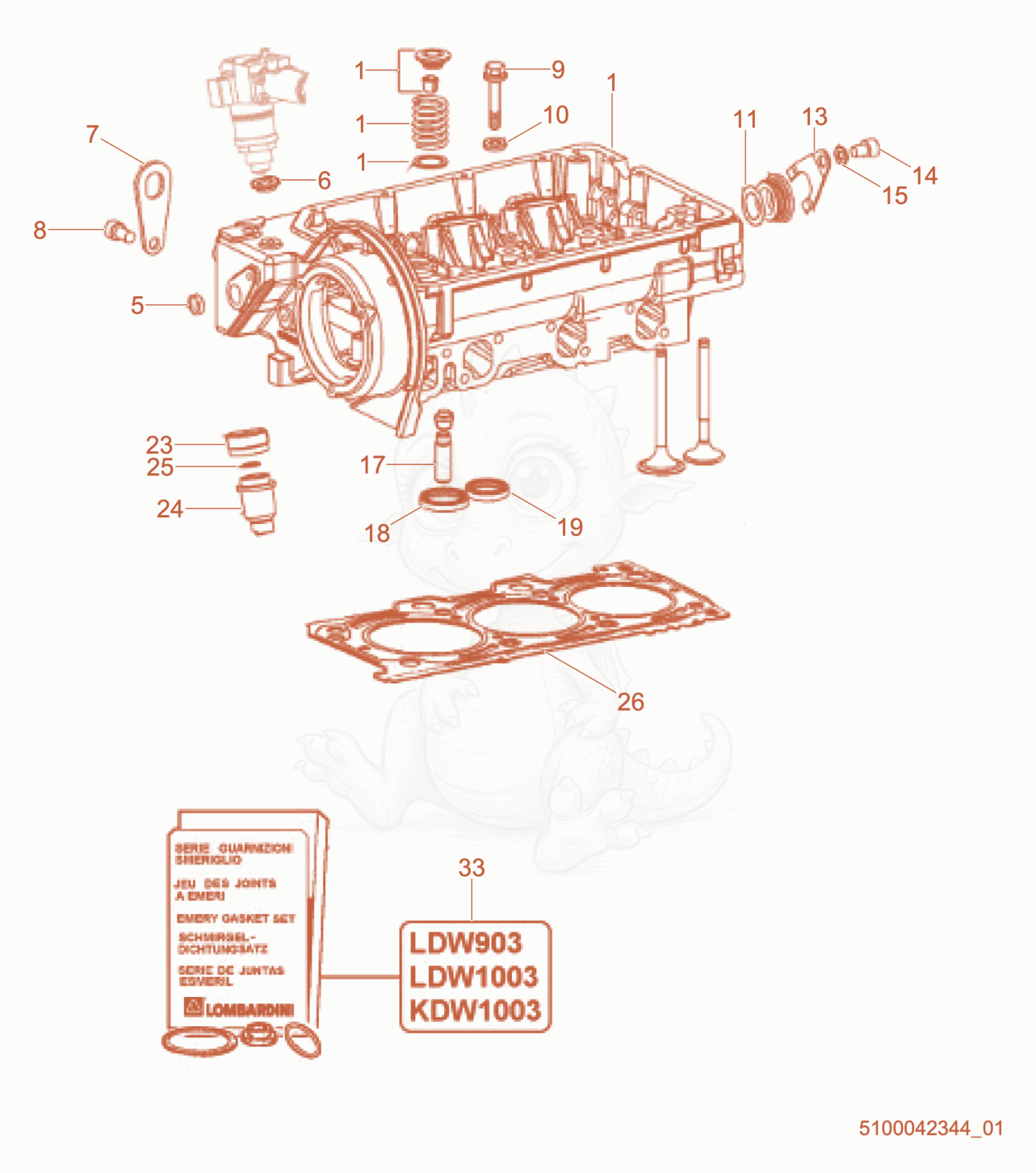

RTX-SC2EU Cylinder Head Diagram
- cylinder head - 5000160388×1
- PLUG-EXPANSION 18mm - 5000159449×2
- spark arrester - 5000159318×3
- BRACE-LIFTING - 5000215524×2
- SCREW M8 X 16 - 5000084156×1
- BOLT - 5000159479×8
- washer - 5000159350×8
- O-ring - 5000159231×1
- RETAINER - 5000159311×1
- BOLT M8 X 14 - 5000159254×1
- Washer - 5000082292×1
- GUIDE-VALVE - 5000159303×6
- VALVE GUIDE-INTAKE - 5000160381×3
- VALVE GUIDE-EXHAUST - 5000160382×3
- nut - 5000159285×3
- Spacer - 5000215494×9
- BOWL-PRECOMBUSTION CHAMBER - 5000160380×3
- GASKET-CYL.HEAD 1,63MM THICK - 5100042194×1
- GASKET-CYL.HEAD 1,53MM THICK - 5100042195×1
- Gasket Set - 5200009477×1
