Converter SFU 10/250

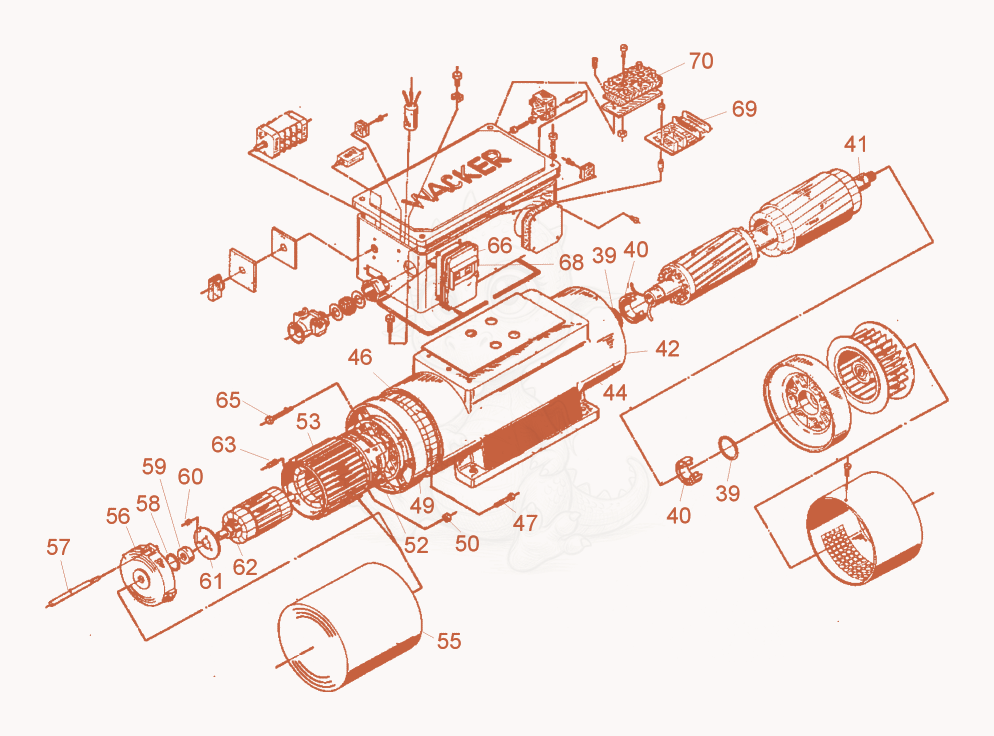

SFU10/250 Converter cpl. Diagram

Exploded parts diagram of the Converter cpl. of a Wacker Neuson SFU10/250, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 395000024322Not stocked
    Shim ring×2
  • 405000024321
    $21.67
    BEARING-RADIAL BALL,6006 - 5000024321×2
  • 415000046846Not stocked
    Rotor×1
  • 425000024309Not stocked
    Stator stack×1
  • 445000046926Not stocked
    Covering×1
  • 465000024305Not stocked
    Stator stack×1
  • 475000011367Not stocked
    Hexagonal head cap screw×4
  • 495000024320Not stocked
    Bearing bracket×1
  • 505000010879
    $0.03
    NUT-HEX,M5 8,ISO4032 - 5000010879×3
  • 525000058812Not stocked
    Intermediate plate×1
  • 535000046908Not stocked
    Field transmitter×1
  • 555000046842Not stocked
    Protective hood×1
  • 565000046949Not stocked
    Bearing bracket×1
  • 575000058813Not stocked
    Pulling bolt×3
  • 585000046925Not stocked
    Spring washer×1
  • 595000014517Not stocked
    Grooved ball bearing×1
  • 605000011735
    $0.13
    SCREW M3 X 6 CHEESE HD. - 5000011735×3
  • 615000046843
    $378.49
    RECTIFIER - 5000046843×1
  • 625000046452Not stocked
    Field transmitter×1
  • 635000013187Not stocked
    Straight pin×1
  • 655000011331
    $0.25
    SCREW M6 X 50 HX.HD. - 5000011331×8
  • 665000011725
    $0.13
    SCREW M4 X 8 CHEESE HD. - 5000011725×2
  • 685000032731
    $16.57
    COVER-SAFETY SWITCH - 5000032731×1
  • 695000031187Not stocked
    Fuse×1
  • 705000046266Not stocked
    Terminal board×1
