SCREED-TRUSS SP50,PWR,5',5HP

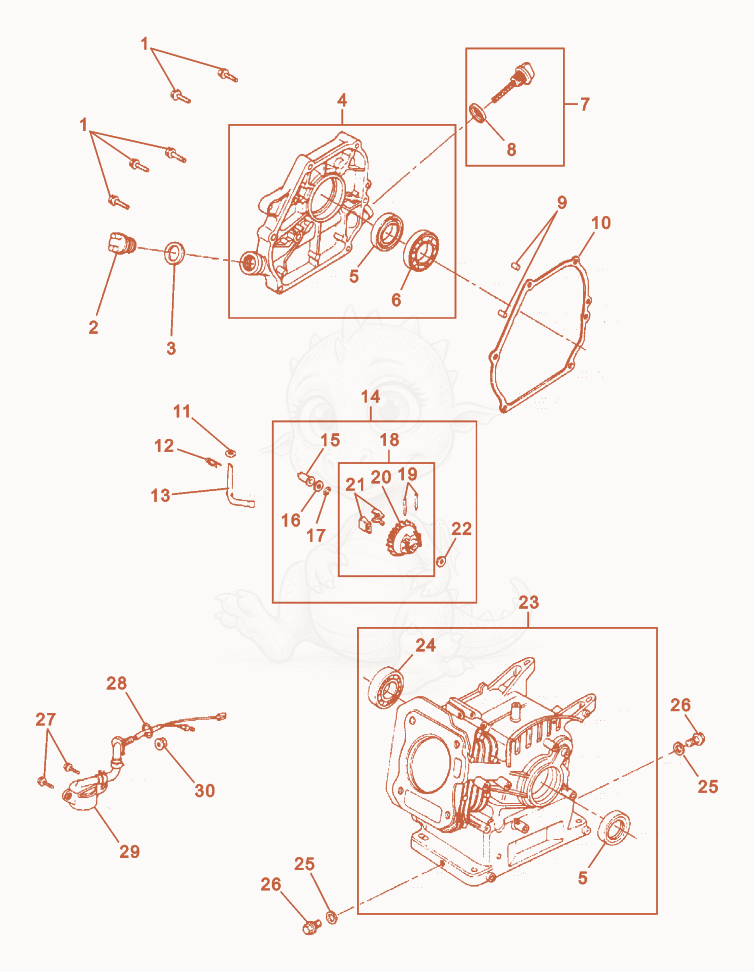

SP50 Engine Block Diagram
- SCREW M8 X 32,HX.FLANGE - 5000071630×6
- CAP-OIL FILLER - 5000074643×1
- GASKET-OIL FILLER CAP - 5000081608×1
- COVER-CRANKCASE - 5000081991×1
- SEAL-SHAFT 25 X 41 X 6 - 5000053983×2
- BEARING-RADIAL BALL,6205 - 5000053984×1
- CAP - 5000070970×1
- GASKET - 5000070971×1
- PIN A8 X 14,DOWEL - 5000053995×2
- GASKET-CRANKCASE COVER - 5000082000×1
- SET-GASKETS,ENGINE - 5000110600×1
- WASHER 6MM,PLAIN - 5000071639×2
- PIN - 5000054033×1
- GOVERNOR ARM - 5000107060×1
- KIT-GOVERNOR REPAIR - 5000081755×1
- SLIDER - 5000070953×1
- Washer - 5000070959×1
- RET.RING 7.7MM,FORM C - 5000081615×1
- GOVERNOR-COMPLETE - 5000076934×1
- WASHER 6MM,PLAIN - 5000071639×2
- CYLINDER-ENGINE - 5000082001×1
- BEARING 6205SH (KOYO) - 5000082018×1
- Washer - 5000070963×2
- PLUG - 5000070964×2
- SCREW M6 X 12,HX.FLANGE - 5000072333×2
- O-RING 14 X 1.3 - 5000071082×1
- SWITCH-OIL ALERT,COMPLETE - 5000072331×1
- NUT M10,HEX.FLANGE - 5000072332×1
