WN Track dumper TD09

TD09 AIR FILTER Diagram

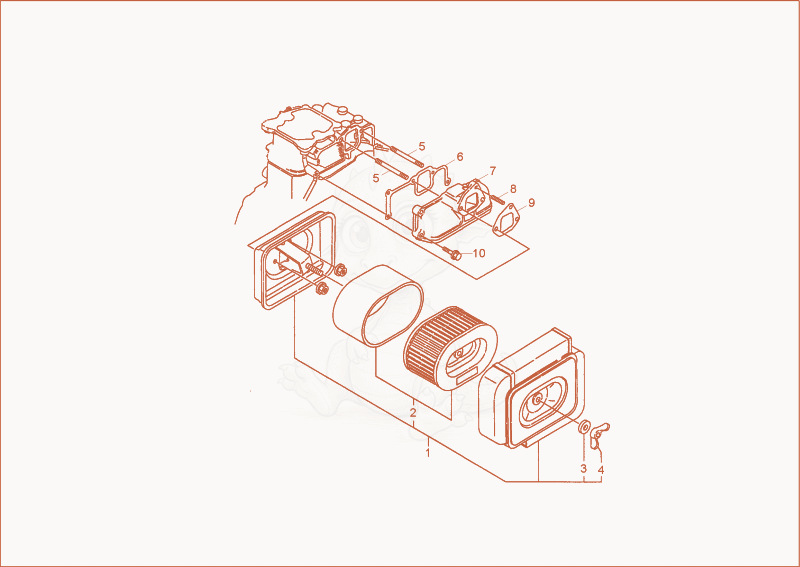

Exploded parts diagram of the AIR FILTER of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000134846Not stocked
    air cleaner×1
  • 21000133696Not stocked
    airfilter insert×1
  • 31000134847Not stocked
    seal ring×1
  • 41000085602
    $2.37
    WING NUT - 1000085602×1
  • 51000134848Not stocked
    stud bolt×2
  • 61000134849Not stocked
    seal×1
  • 71000134850Not stocked
    suction manifold×1
  • 81000134851Not stocked
    stud bolt×1
  • 91000134852Not stocked
    seal×1
  • 101000134853
    $1.01
    screw - 1000134853×3
