WN Track dumper TD09

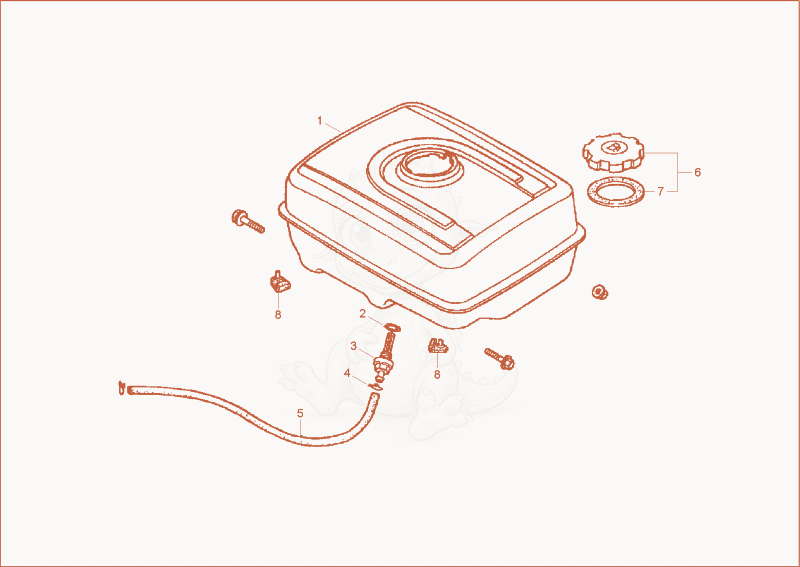

TD09 TANK Diagram

Exploded parts diagram of the TANK of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000133917Not stocked
    fuel tank×1
  • 21000133535Not stocked
    o-ring×1
  • 31000133915Not stocked
    connection×1
  • 41000133907Not stocked
    clamp×2
  • 51000133850Not stocked
    gasoline line×1
  • 61000133909Not stocked
    filler cap×1
  • 71000133847
    $8.36
    SEAL - 1000133847×1
  • 81000165991Not stocked
    RUBBER BRACKET×2
