WN Track dumper TD09

TD09 operating valve Diagram

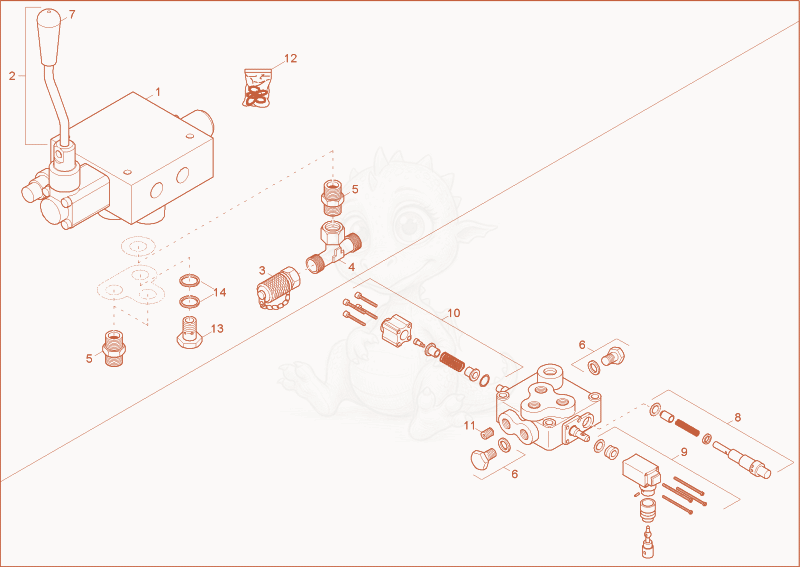

Exploded parts diagram of the operating valve of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000129857Not stocked
    control valve×2
  • 21000129860Not stocked
    shift lever×2
  • 31000129173Not stocked
    minimess point×2
  • 41000015519
    $12.63
    ET12LOMDA3C - 1000015519×2
  • 51000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 61000096826Not stocked
    plug×4
  • 71000129829Not stocked
    handle×2
  • 81000066431
    $161.38
    pressure limit cartridge - 1000066431×2
  • 91000066434Not stocked
    lever fastening set×2
  • 101000129858Not stocked
    back adjust stick set×2
  • 111000093264Not stocked
    plug×2
  • 121000130448Not stocked
    seal kit×2
  • 131000163680
    $3.55
    banjo bolt - 1000163680×2
  • 141000129428
    $1.51
    copper ring - 1000129428×4
