WN Track dumper TD09

TD09 tilt ram Diagram

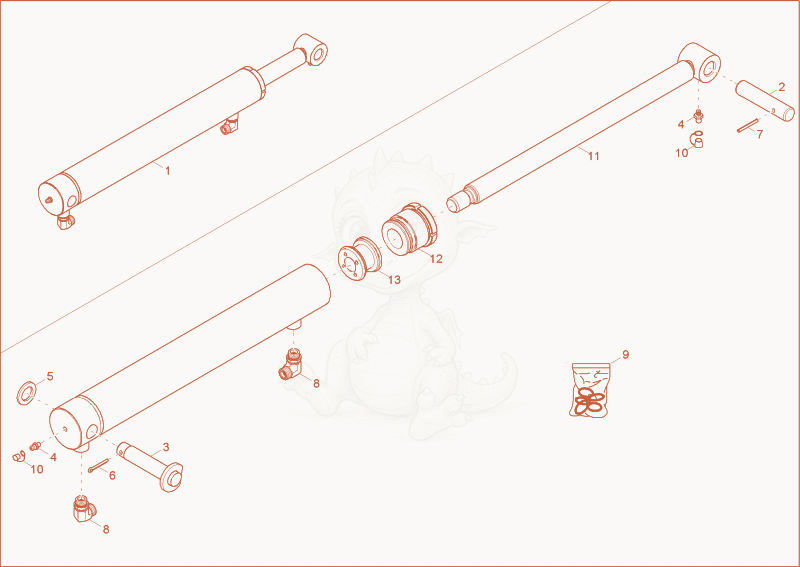

Exploded parts diagram of the tilt ram of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000129276Not stocked
    tilt ram×1
  • 21000129278Not stocked
    cylinder pin×1
  • 31000129422Not stocked
    cylinder pin×1
  • 41000015475Not stocked
    grease nipple×2
  • 51000082625
    $0.83
    washer 19 - 1000082625×1
  • 61000082731Not stocked
    cotterpin×1
  • 71000085646
    $0.12
    cotter pin - 1000085646×1
  • 81000060903
    $27.33
    WEE8LROMDA3C - 1000060903×2
  • 91000129423Not stocked
    seal kit×1
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000129427Not stocked
    piston rod×1
  • 121000129425Not stocked
    guide bushing×1
  • 131000129432Not stocked
    piston×1
