WN Track dumper TD09

TD09 pilot stand Diagram

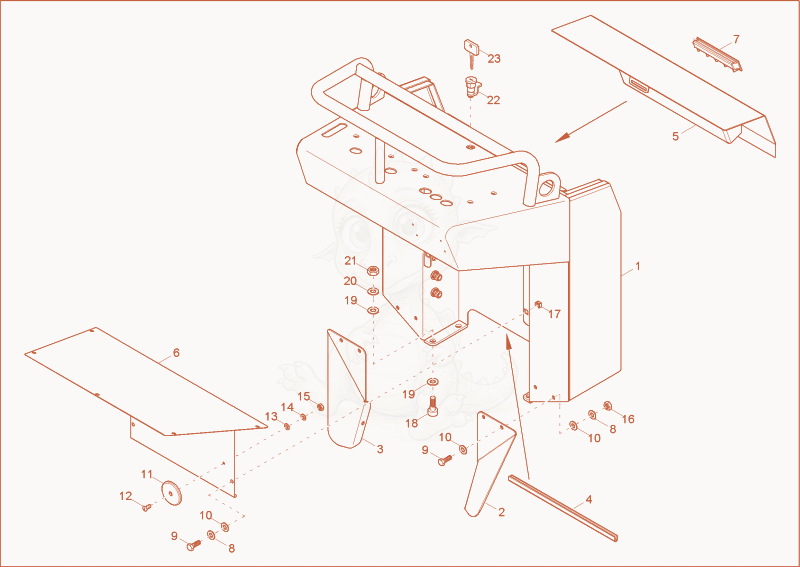

Exploded parts diagram of the pilot stand of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000129515Not stocked
    pilot stand×1
  • 21000129512Not stocked
    protection plate×1
  • 31000129514Not stocked
    protection plate×1
  • 41000129771Not stocked
    edge protection×1
  • 51000129516Not stocked
    pilotstand cover×1
  • 61000129517Not stocked
    cover plate×1
  • 71000129518Not stocked
    tray handle×1
  • 81000082617
    $1.08
    spring washer - 1000082617×13
  • 91000013008Not stocked
    hex screw×9
  • 101000015431Not stocked
    washer×19
  • 111000069006
    $1.37
    REFLECTOR - 1000069006×2
  • 121000085550
    $0.80
    ovalhead screw - 1000085550×8
  • 131000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 141000082621
    $0.74
    spring washer - 1000082621×2
  • 151000085581
    $1.51
    HEXAGON NUT - 1000085581×2
  • 161000013021Not stocked
    hexagon nut×6
  • 171000015425Not stocked
    cage nut×7
  • 181000085474
    $1.06
    cheese head screw - 1000085474×4
  • 191000049219Not stocked
    washer×8
  • 201000022017Not stocked
    spring washer×4
  • 211000020127Not stocked
    hexagon nut×4
  • 221000069463Not stocked
    cylinder lock×1
  • 231000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
