WN Track dumper TD09

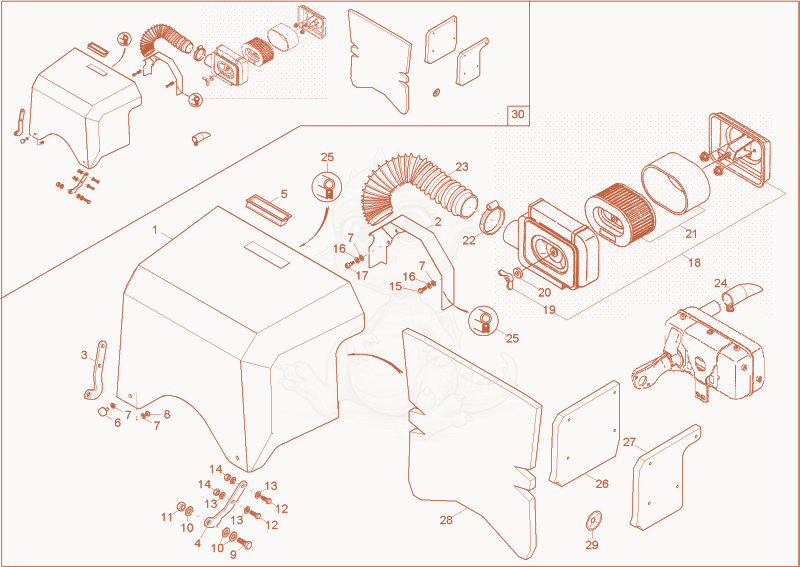

TD09 Noise reduction (Option) Diagram
- 11000145809Not stockedengine hood×1
- 21000145821Not stockedair guide plate×1
- 31000145822Not stockedfasten bow clip×1
- 41000145823Not stockedfasten bow clip×1
- 51000129518Not stockedtray handle×1
- 61000145825Not stockedBUFFER×2
- 71000015430Not stockedwasher×9
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- 91000047388Not stockedhex screw×2
- 101000049219Not stockedwasher×6
- HEXAGON NUT - 1000019657×2
- 121000013008Not stockedhex screw×4
- 131000015431Not stockedwasher×8
- DIN985-M8-8-A2C - 1000015416×4
- 151000018400Not stockedhex screw×4
- 161000015444Not stockedspring washer×5
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
- 181000145827Not stockedair cleaner×1
- WING NUT - 1000085602×1
- 201000134847Not stockedseal ring×1
- 211000133696Not stockedairfilter insert×1
- hose clamp 50-70mm - 1000083310×1
- 231000145828Not stockedsuction hose×0.25
- 241000145824Not stockedexhaust pipe×1
- 251000017833Not stockedrubber profile×1
- 261000145826Not stockedbonnet insulating mat×1
- 271000146257Not stockedbonnet insulating mat×1
- 281000146260Not stockedbonnet insulating mat×1
- insulating washer - 1000117022×16
- 301000145808Not stockedACCESSORY KIT AUXILIARY WEIGHT×1
