WN Track dumper TD09

TD09 skip Diagram

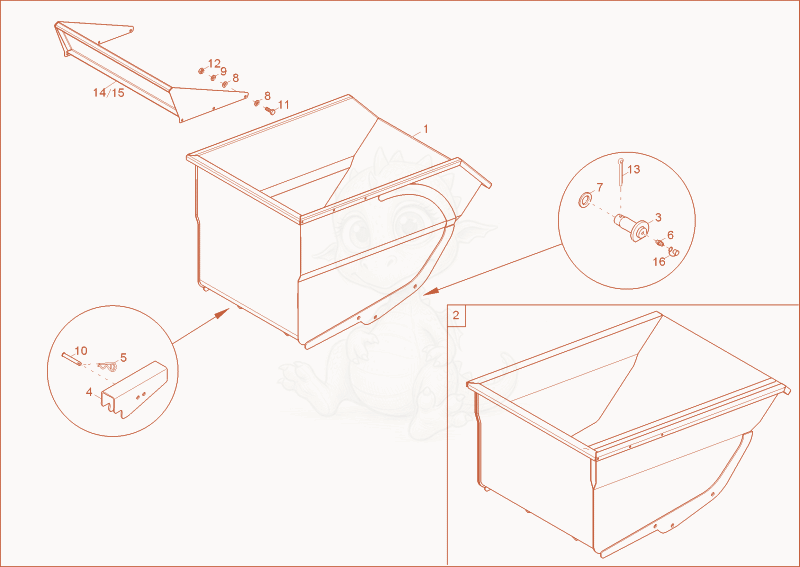

Exploded parts diagram of the skip of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000129494Not stocked
    skip×1
  • 21000166181Not stocked
    skip×1
  • 31000129498Not stocked
    pin×2
  • 41000129500Not stocked
    safety support×1
  • 51000082627
    $0.07
    plug - 1000082627×1
  • 61000015475Not stocked
    grease nipple×2
  • 71000082625
    $0.83
    washer 19 - 1000082625×2
  • 81000015431Not stocked
    washer×12
  • 91000082617
    $1.08
    spring washer - 1000082617×6
  • 101000129492Not stocked
    pin×1
  • 111000013008Not stocked
    hex screw×6
  • 121000013021Not stocked
    hexagon nut×6
  • 131000082731Not stocked
    cotterpin×2
  • 141000129495Not stocked
    bulk plate×1
  • 151000274792Not stocked
    bulk plate×1
  • 161000015480Not stocked
    cap grease nipple×2
