WN Track dumper TD09

TD09 CYLINDER BLOCK, VALVE COVER Diagram

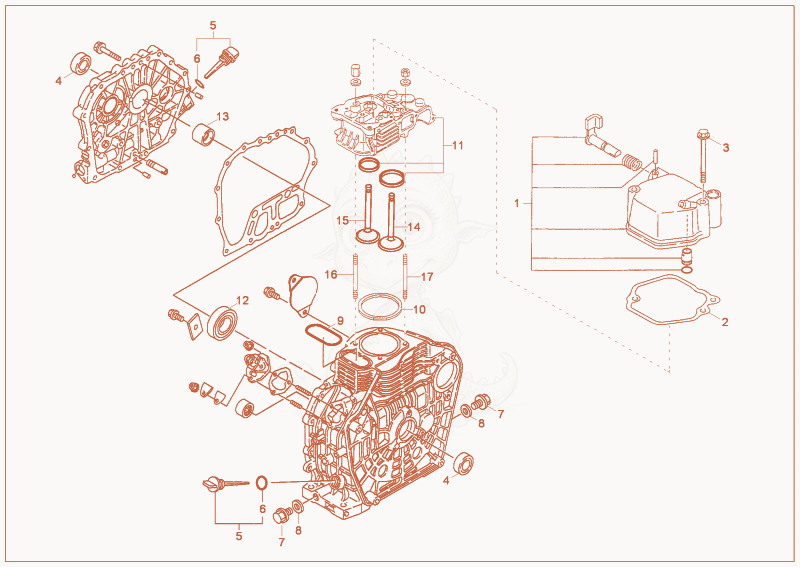

Exploded parts diagram of the CYLINDER BLOCK, VALVE COVER of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000134818Not stocked
    valve cover×1
  • 21000134815Not stocked
    valve cover seal×1
  • 31000134817Not stocked
    screw×2
  • 41000134821
    $7.96
    SHAFT SEAL - 1000134821×2
  • 51000134822
    $5.48
    LOCKING CAP - 1000134822×2
  • 61000109445
    $3.59
    O-RING - 1000109445×2
  • 71000134824
    $7.08
    LOCK SCREW - 1000134824×2
  • 81000071058Not stocked
    seal ring×2
  • 91000134825Not stocked
    o-ring×1
  • 101000134826Not stocked
    cylinder head gasket×1
  • 111000155194Not stocked
    cylinder head×1
  • 121000161241
    $85.64
    ball bearing - 1000161241×1
  • 131000161242
    $13.83
    main bearing - 1000161242×1
  • 141000186788Not stocked
    intake valve×1
  • 151000186789Not stocked
    exhaust valve×1
  • 161000190753Not stocked
    stud bolt×2
  • 171000190754Not stocked
    stud bolt×2
