WN Track dumper TD09

TD09 CYLINDER BLOCK Diagram

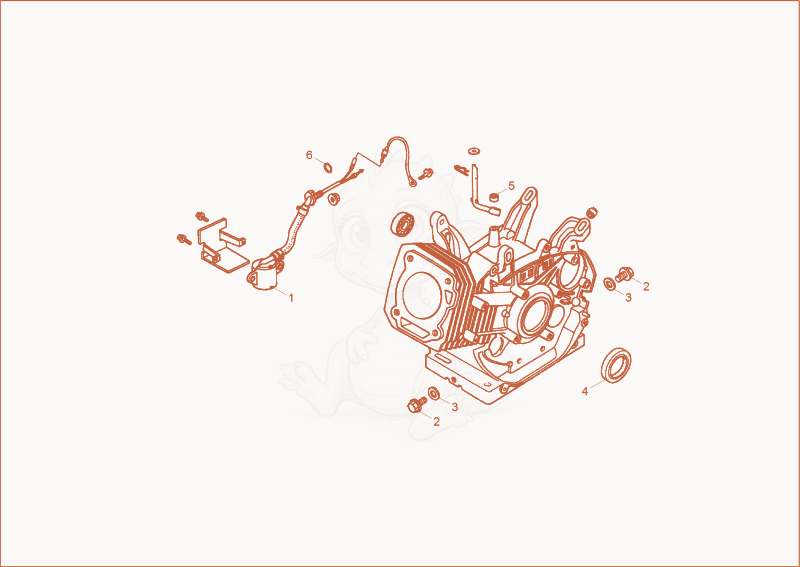

Exploded parts diagram of the CYLINDER BLOCK of a Wacker Neuson TD09, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000133538
    $167.00
    SWITCH - 1000133538×1
  • 21000133439Not stocked
    drain screw×2
  • 31000133469
    $1.46
    WASHER - 1000133469×2
  • 41000133473Not stocked
    seal ring×1
  • 51000133474Not stocked
    seal ring×1
  • 61000133535Not stocked
    o-ring×1
