Single direction vibratory plate VP1030Aw

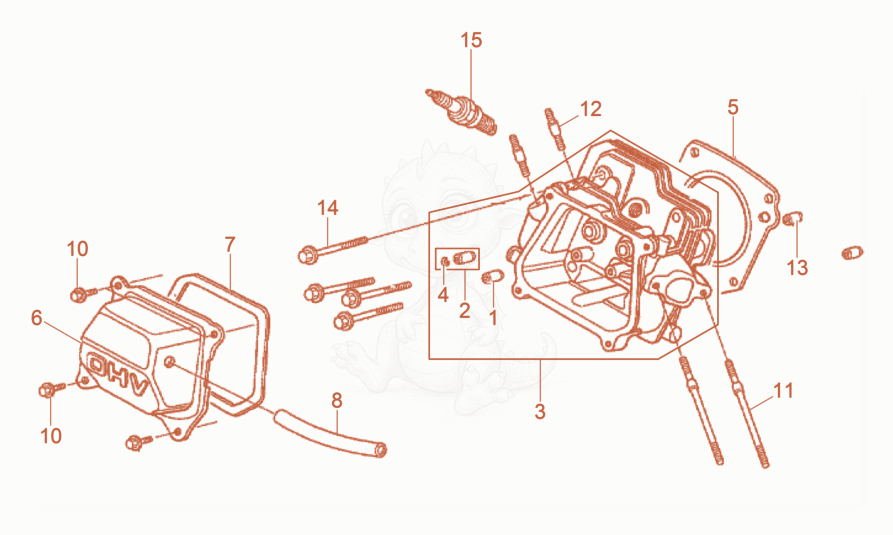

VP1030AW Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson VP1030AW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000070945
    $24.22
    GUIDE-ENGINE VALVE,INTAKE - 5000070945×1
  • 25000070944
    $11.04
    GUIDE-VALVE,EXHAUST,ENGINE - 5000070944×1
  • 35000081786
    $337.84
    HEAD-ENGINE CYLINDER - 5000081786×1
  • 45000081744
    $2.07
    CLIP-VALVE GUIDE - 5000081744×1
  • 55000216514
    $16.61
    GASKET-CYLINDER - 5000216514×1
  • 65100005424Not stocked
    Cover cpl.×1
  • 75000070942
    $6.31
    GASKET - 5000070942×1
  • 85000081761
    $5.61
    TUBE-BREATHER - 5000081761×1
  • 105000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 115000406696
    $5.36
    BOLT,STUD,6X114 - 5000406696×1
  • 125000070948
    $5.36
    STUD M8 X 32 - 5000070948×1
  • 135000070950
    $5.75
    PIN-DOWEL - 5000070950×1
  • 145000217519Not stocked
    Flange bolt×4
  • 155000162698Not stocked
    Spark plug×1
