Single direction vibratory plate VP1030Aw

VP1030AW Exhaust baffle Diagram

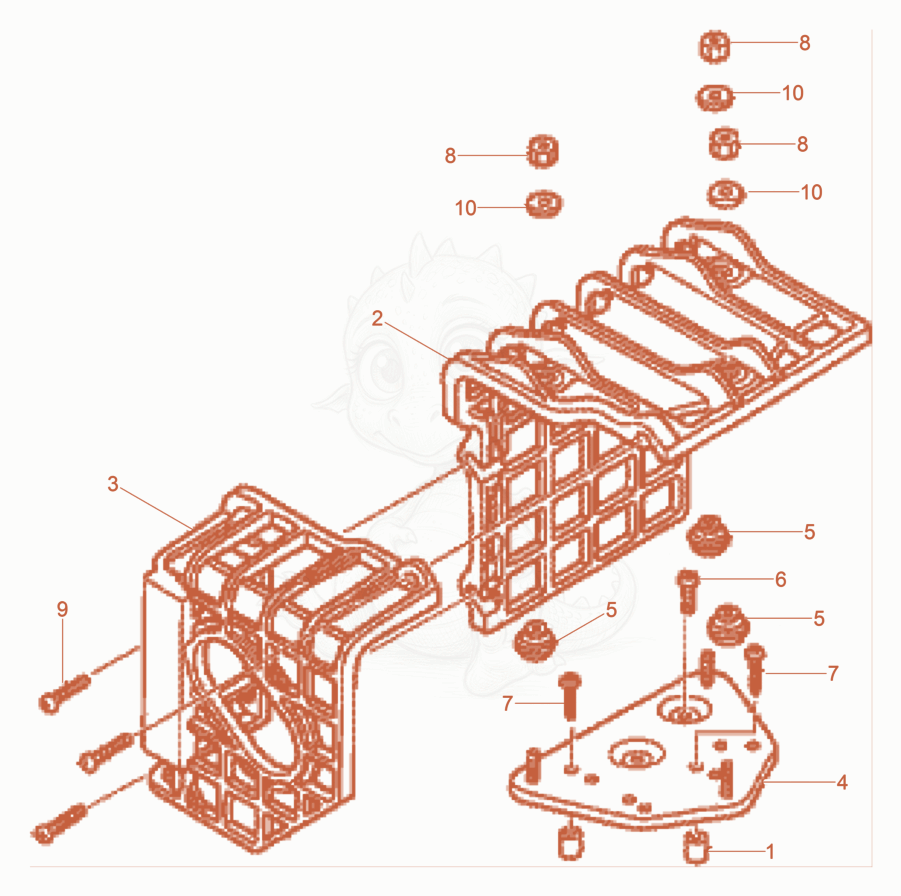

Exploded parts diagram of the Exhaust baffle of a Wacker Neuson VP1030AW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000207655
    $7.04
    SPACER-BUSHING - 5000207655×2
  • 25000207656Not stocked
    Guard×1
  • 35000207657Not stocked
    Guard×1
  • 45100029236
    $34.77
    Bracket - 5100029236×1
  • 55000207659
    $17.39
    Spacer - 5000207659×3
  • 65000071070
    $2.73
    SCREW M5 X 8,TAPPING - 5000071070×1
  • 75000207666
    $5.04
    SCREW-SELF TAPPING 5 X 25 - 5000207666×2
  • 85000207667
    $5.21
    NUT-HEX - 5000207667×3
  • 95100003489
    $2.04
    Screw w/washer - 5100003489×3
  • 105000207669
    $1.55
    WASHER-5MM,PLAIN - 5000207669×3
