WP 1540AW

WP1540AW Drive cpl. Diagram

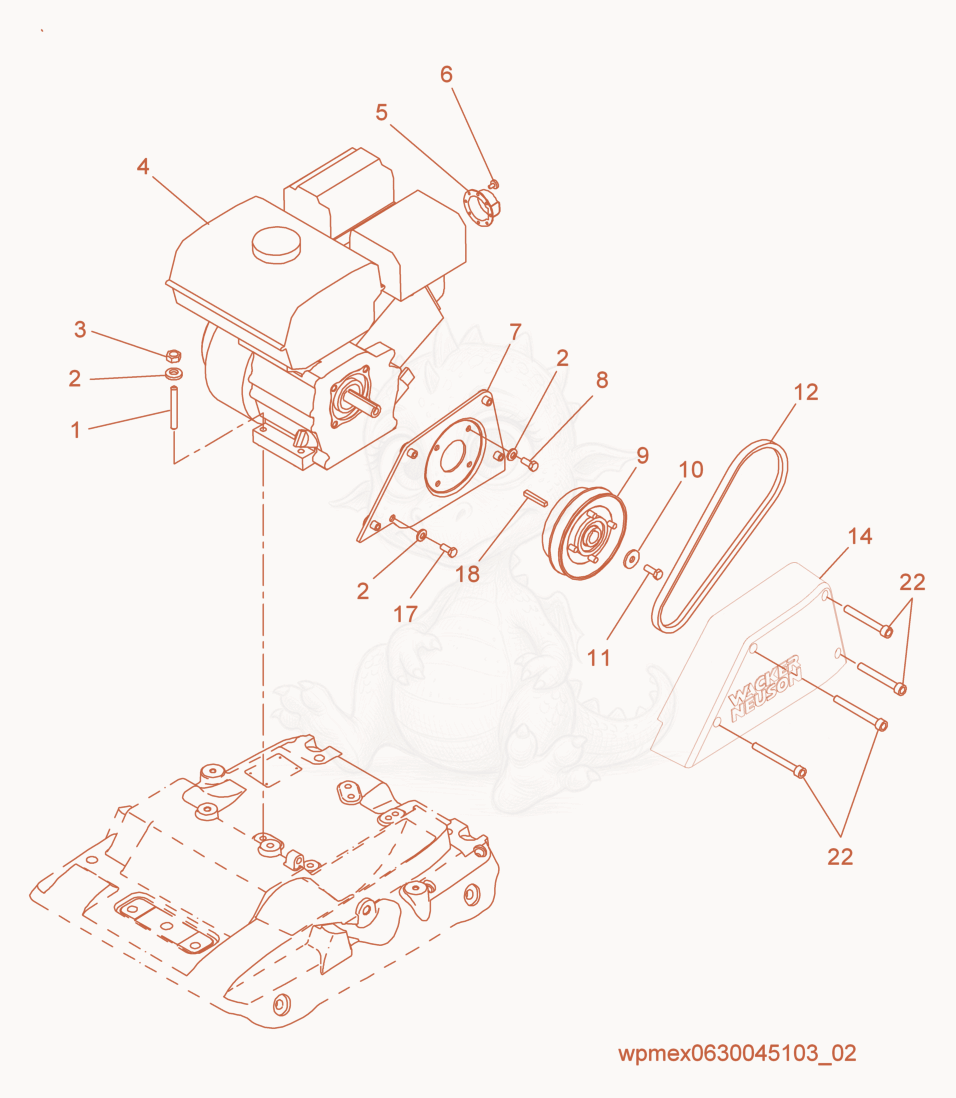

Exploded parts diagram of the Drive cpl. of a Wacker Neuson WP1540AW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000010929
    $6.43
    STUD M8 X 35 - 5000010929×4
  • 25000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×9
  • 35000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 45000164808
    $1,073.13
    ENGINE-HONDA GX160 S/P - 5000164808×1
  • 55000081756
    $30.82
    BAFFLE-EXHAUST - 5000081756×1
  • 65000071073
    $0.12
    SCREW M4 X 6,C - 5000071073×2
  • 75000113976
    $76.20
    PLATE-BELTGUARD - 5000113976×1
  • 85000026169
    $0.25
    SCREW 5/16-24 X 3/4,HX.HD. - 5000026169×4
  • 95000086968
    $376.05
    CLUTCH-ADJUSTABLE - 5000086968×1
  • 115000026169
    $0.25
    SCREW 5/16-24 X 3/4,HX.HD. - 5000026169×1
  • 125000111158
    $13.16
    BELT-V A27 - 5000111158×1
  • 145000402227Not stocked
    Upper Beltguard Kit×1
  • 175000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×1
  • 185000070999
    $19.09
    KEY-SQUARE 4.78 X 38 - 5000070999×1
  • 225000401839Not stocked
    Hexagonal head cap screw×4
