PSA2-800

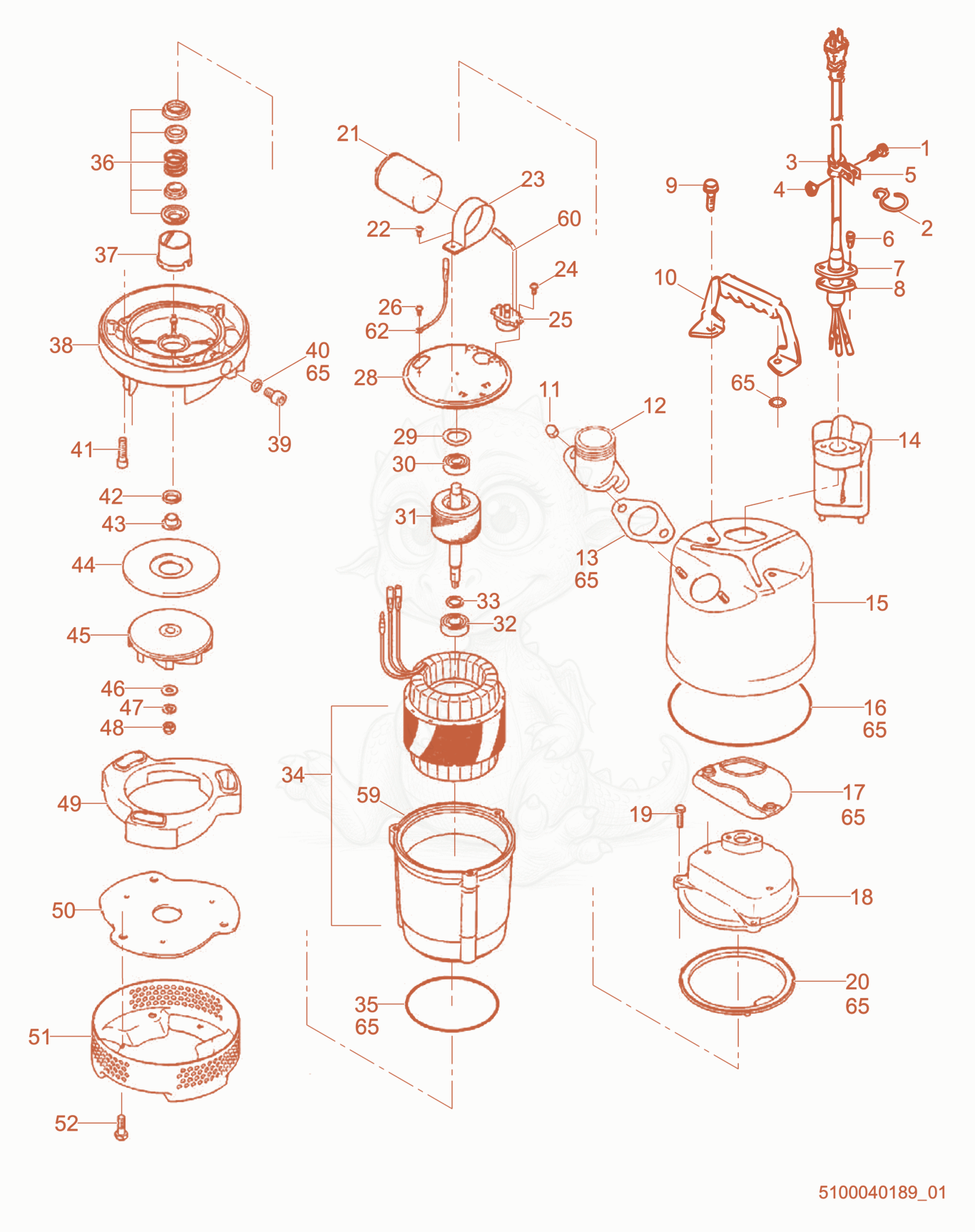

Despiece de Pump Components · PSA2800
- 15200012709No la vendemosBolt×1
- hook - 5000150457×1
- 35200012711No la vendemosRubber pipe×1
- NUT-M5 - 5000150743×1
- CLIP-CABLE - 5000150449×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- CABLE-POWER,230V - 5000152365×1
- BOLT - 5000175093×2
- HANDLE - PS2 800 - 5200009263×1
- NUT-ACORN - 5000150753×2
- COUPLING-HOSE,2 BSPT - 5000176873Se desconoce×1
- COUPLING-HOSE,2 BARB - 5000176871Se desconoce×1
- 125000054341No la vendemosQuick disconnect coupling×1
- relay - 5000152589×1
- COVER-PUMP PS - 5000176998×1
- 185200021916No la vendemosHousing×1
- BOLT - 5000157363×3
- 215200021919No la vendemosCapacitor×1
- SCREW-PHMS,M4 X 6 - 5000177004×1
- 235200012414No la vendemosRetainer×1
- 245200012384No la vendemosScrew×2
- 255200012385No la vendemosMotor protection switch×1
- BOLT-M4 X 8 W/WASHER - 5000176787×1
- 285200021931No la vendemosBracket×1
- SCREW-M4 X 4 - 5000150777×1
- 305200021932No la vendemosBall bearing×1
- 315200021933No la vendemosRotor cpl.×1
- 325200021934No la vendemosBall bearing×1
- COLLAR-BEARING - 5000150623×1
- 345200021937No la vendemosStator×1
- SEAL-MECHANICAL - 5000150505×1
- LIFTER-OIL - 5000157378×1
- CASING-OIL - 5000176977×1
- PLUG-OIL - 5000150535×1
- BOLT-SOCKET HEAD - 5000157380×3
- SEAL-DUST - 5000150708×1
- sleeve - 5000150650×1
- RING-WEAR - 5000175099×1
- impeller - 5000176887×1
- WASHER-PLAIN,M8 - 5000150759×1
- WASHER-LOCK,M8 - 5000150763×1
- NUT-ACORN - 5000150753×1
- CASING-PUMP - 5000177023×1
- COVER-SUCTION - 5000175100×1
- STRAINER-SUCTION - 5000157372×1
- BOLT W/WASHER M8 X 20 - 5000159227×3
- 595200021938No la vendemosMotor housing×1
- 605200012386No la vendemosWire-blue×1
- 625200012390No la vendemosGround wire×1
- WASHER-LOCK - 5100054401×1
- GASKET-O RING SET - 5000175110×1
