RCP-32/120 32MM CUTTING

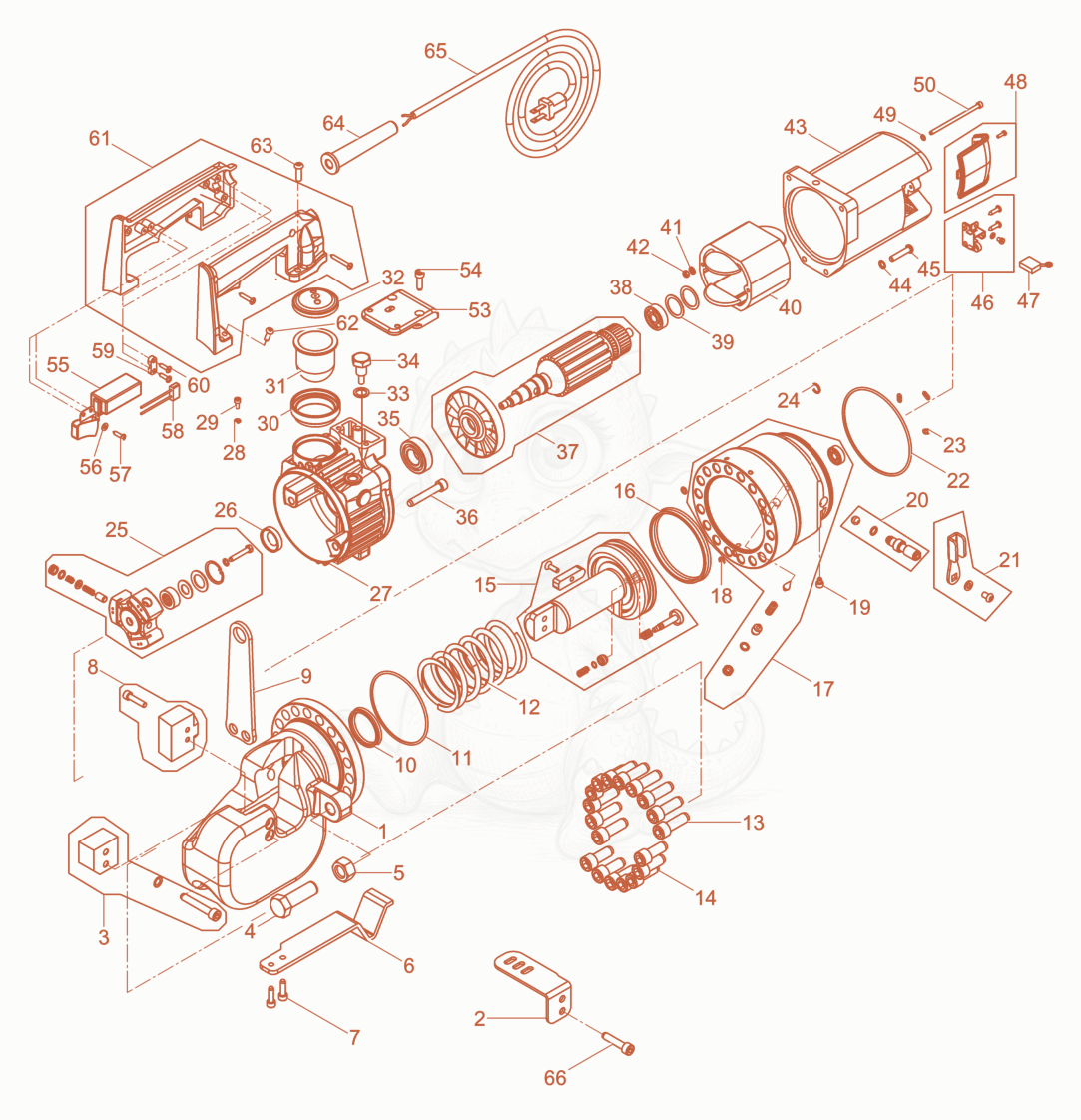

Despiece de Reinforcement Cutting Equipment · RCP-32/120
- Cutter head - 5000216868×1
- Protection RCP 32 - 5100000030×1
- BLADE-CUTTING - 5000216991×1
- SCREW-CAP,HEX HD. - 5000217023×1
- NUT-HEXAGON - 5000216844×1
- Support - 5000216869×1
- SCREW-CHEESE HD. - 5000216838×2
- BLADE-CUTTING - 5000216992×1
- Lifting point - 5000216870×1
- Gasket - 5000216945×1
- O-Ring - 5000216923×1
- SPRING-COMPRESSION - 5000216874×1
- SCREW-CHEESE HD. - 5000216839×11
- SCREW-CHEESE HD. - 5000216841×7
- Piston cpl. - 5000216968×1
- Gasket - 5000216926×1
- Cylinder assembly cpl. - 5000216976×1
- O-Ring - 5000216925×2
- SCREW-CHEESE HD. - 5000216891×1
- pressure relief - 5000216994×1
- Lever cpl. - 5000216995×1
- O-Ring - 5000216930×1
- O-Ring - 5000216917×3
- O-Ring - 5000216933×3
- KIT-PUMP - 5000216973×1
- SEAL-OIL - 5000217014×1
- HOUSING-PUMP - 5000216904×1
- Seal - 5000227719×1
- Screw - 5000227720×1
- Support - 5000216903×1
- Diaphragm - 5000216951×1
- CAP-FUEL TANK - 5000216906×1
- RING-SEAL - 5000217033×1
- PLUG-SCREW - 5000217006×1
- BEARING-BALL - 5000217013×1
- SCREW-CHEESE HD. - 5000216840×3
- ROTOR CPL. - 5000217076×1
- BEARING-BALL - 5000217012×1
- RING-COMPENSATING - 5000217032×4
- Stator - 5000216957×1
- WASHER-LOCK,TOOTHED - 5000217034×2
- NUT-HEXAGON - 5000216843×2
- HOUSING-MOTOR - 5000216948×1
- WASHER-LOC - 5000217029×4
- Screw - 5000217045×4
- HOLDER-BRUSH - 5000216999×2
- BRUSH-CARBON - 5000216916×2
- Cover cpl. - 5000216981×2
- WASHER-LOCK - 5000216912×2
- SCREW-CHEESE HD. - 5000216858×2
- Bracket - 5000216907×1
- SCREW-CHEESE HD. - 5000217037×2
- Press switch - 5000227718×1
- Washer - 5000216847×2
- Screw - 5000217017×2
- FILTER-INTERFERENCE - 5000216953×1
- Strain relief - 5000216918×1
- Screw - 5000217018×2
- HANDLE COMPLETE - 5000216998×1
- Screw - 5000217046×2
- Screw - 5000217030×2
- BUSHING-CABLE - 5000216919×1
- CABLE-POWER SUPPLY W/PLUG 120V - 5000216962×1
- set of screws RCP 32 - 5100000035×1
