SPARE PARTS LIST 1902RD SP

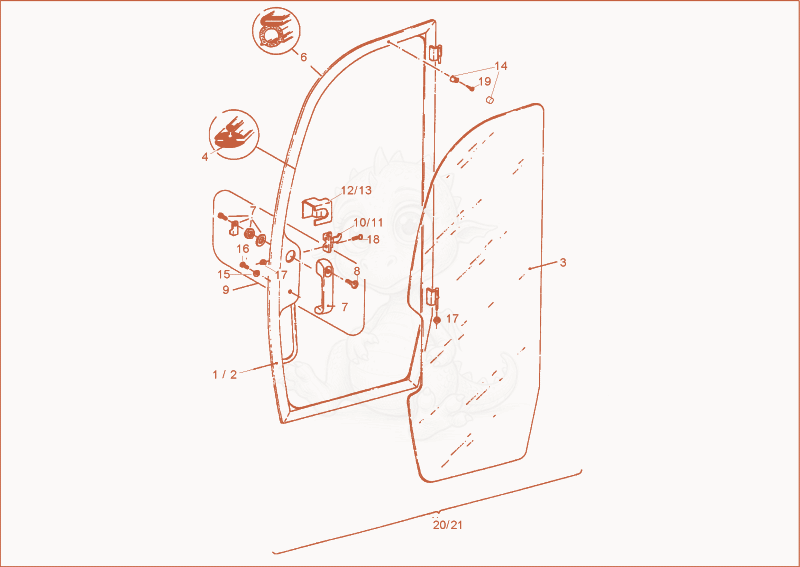

1902RD door Diagram

Exploded parts diagram of the door of a Wacker Neuson 1902RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000065489Not stocked
    door frame×1
  • 21000065732Not stocked
    door frame×1
  • 31000003343
    $581.57
    DOOR WINDOW - 1000003343×1
  • 41000017922Not stocked
    rubber profile×4
  • 61000017921Not stocked
    rubber profile×4
  • 71000003345Not stocked
    door handle×1
  • 81000184819
    $14.17
    EZ17 Key without cap - 1000184819×2
  • 91000020106Not stocked
    door handle×1
  • 101000003344Not stocked
    lock (w/o keys)×1
  • 111000003865Not stocked
    lock (w/o keys)×1
  • 121000020176Not stocked
    door lock cover×1
  • 131000069002Not stocked
    cover lock×1
  • 141000003347
    $25.93
    locking - 1000003347×1
  • 151000067298Not stocked
    quad ring×1
  • 161000020553Not stocked
    hex screw×1
  • 171000015412
    $1.67
    HEXAGON NUT - 1000015412×3
  • 181000085534
    $2.54
    COUNTERSUNK SCREW - 1000085534×2
  • 191000015386Not stocked
    ovalhead screw×1
  • 201000003348Not stocked
    door×1
  • 211000065733Not stocked
    door×1
