Neuson 2203RD

2203 STALLING LOAD - WARNING DEVICE G(OPTION) Diagram

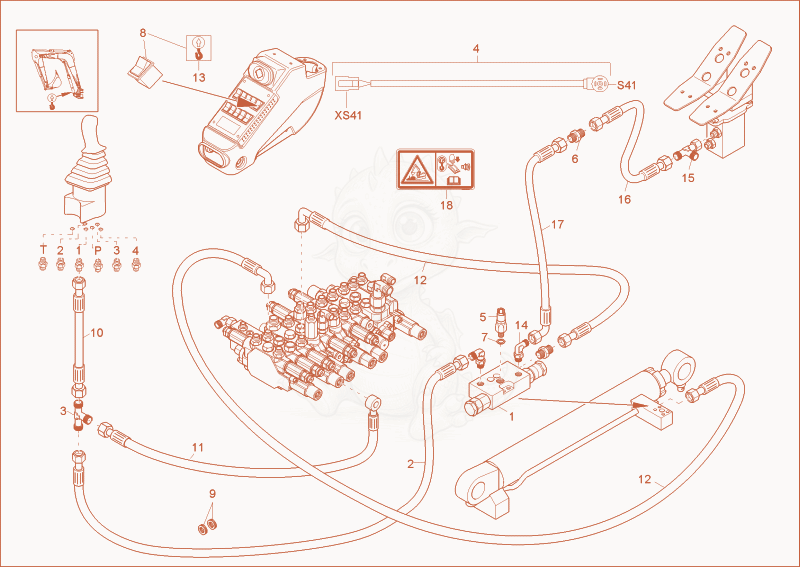

Exploded parts diagram of the STALLING LOAD - WARNING DEVICE G(OPTION) of a Wacker Neuson 2203, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186895Not stocked
    hose burst valve×1
  • 21000267253Not stocked
    Hose×1
  • 31000015534Not stocked
    screw joint×1
  • 41000245140
    $182.46
    cable overloadwarning - 1000245140×1
  • 51000015301Not stocked
    pressure switch×1
  • 61000015545
    $2.43
    G08LA3CX - 1000015545×1
  • 71000124948
    $12.46
    screw seal - 1000124948×1
  • 81000069056Not stocked
    switch overload warning×1
  • 91000081814
    $6.53
    Grommet 16/20/28-2 - 1000081814×2
  • 101000076386
    $12.46
    SLHYDR 1SCP6,0PN8 0 PN8 0 L950,0 0 - 1000076386×1
  • 111000106404
    $51.37
    SLHYDR 1SCP6,0PN8 0 RN1/40 L2100 0 - 1000106404×1
  • 121000108246Not stocked
    Hose×2
  • 131000081958Not stocked
    symbol overload warning×1
  • 141000060903
    $27.33
    WEE8LROMDA3C - 1000060903×1
  • 151000015515Not stocked
    screw joint×1
  • 161000267255Not stocked
    Hose×1
  • 171000267076
    $43.48
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1500 S0 - 1000267076×1
  • 181000252574
    $50.07
    sticker 'security' - 1000252574×1
  • S411000245870
    $37.47
    socket - 1000245870×1
  • XS411000081808
    $16.43
    pin housing - 1000081808×1
