SPARE PARTS LIST 2300/4002 SP

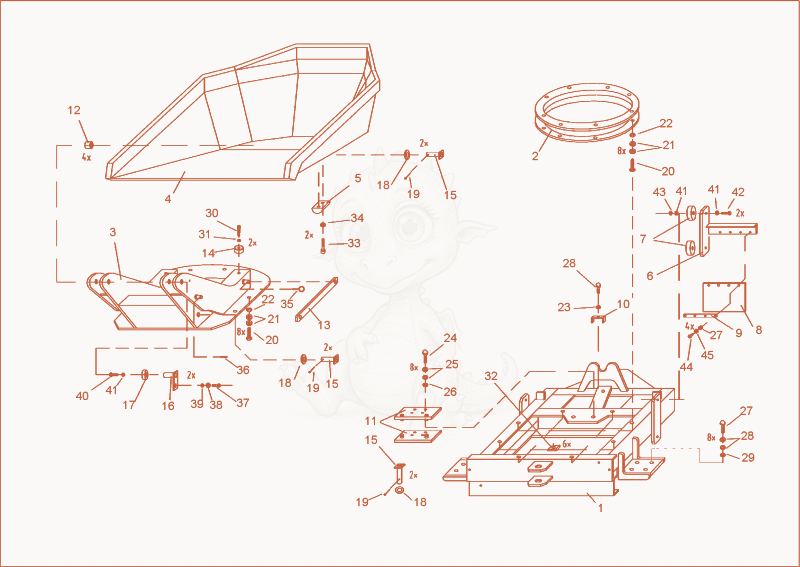

2300/4002 front part Diagram
- 11000078333Not stockedfront frame×1
- 21000013367Not stockedslewing ring×1
- 31000078019Not stockedswivel console×1
- 41000078329Not stockedpowerswivel×1
- 51000013369Not stockedswivel centering×1
- 61000078201Not stockeddust catch bracket×1
- 71000004819Not stockedswing metal buffer×4
- 81000065197Not stockeddust catch×2
- 91000065198Not stockedfastener rail×2
- 101000078402Not stockedbracket hose×1
- 111000013358Not stockedbearing plate×2
- 121000015622Not stockeddx bushing×4
- 131000013357Not stockedmaintenance support×1
- 141000013356Not stockedbucket support×2
- 151000013310Not stockedpin×6
- 161000013370Not stockedbucket tilt pin×2
- 171000013371Not stockedpin piece×2
- 181000082664Not stockedwasher×6
- cotterpin - 1000085659×8
- DIN933 M12x45 10.9 A2C - 1000085440×16
- 211000015453Not stockednorthlock disc×32
- HEXAGON NUT - 1000082563×16
- DIN985-M8-8-A2C - 1000015416×1
- HEX SCREW - 1000085429×8
- 251000015451Not stockednorthlock disc×16
- 261000015423Not stockedhexagon nut×8
- hex screw - 1000085419×8
- Nord-Lock disc NL12x25,4 - 1000094970×16
- 291000015422Not stockedhexagon nut×8
- CHEESE HEAD SCREW - 1000082415×2
- lock washer - 1000082609×2
- 321000082663Not stockedu-washer×6
- 331000020189Not stockedcheese head screw×6
- 341000015443Not stockedlock washer×2
- 351000015457Not stockedcotter pin×1
- cotter pin - 1000085652×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
- 381000015448Not stockedwasher×2
- DIN985-M8-8-A2C - 1000015416×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- 411000015438Not stockedlock washer×10
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- 431000015407Not stockedhexagon nut×4
- hex screw - 1000085378×8
- spring washer - 1000082621×8
- HEXAGON NUT - 1000085587×8
- 471000018447Not stockedhex screw×1
- 481000015475Not stockedgrease nipple×1
