SPARE PARTS LIST 2701AA SP

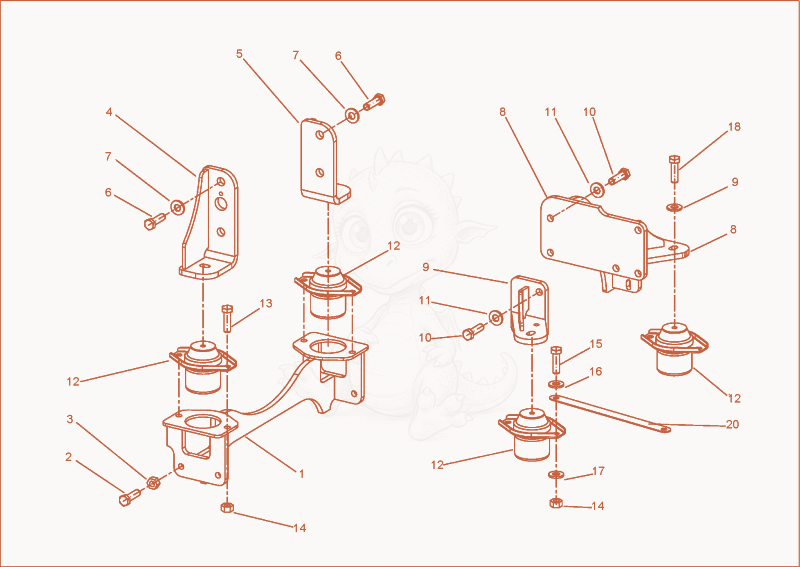

2701AA Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson 2701AA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000075067Not stocked
    engine support×1
  • 21000015346Not stocked
    hex screw×4
  • 31000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 41000075066Not stocked
    engine console×1
  • 51000075065Not stocked
    engine console×1
  • 61000015360Not stocked
    hex screw×4
  • 71000015443Not stocked
    lock washer×4
  • 81000075063Not stocked
    engine console×1
  • 91000075064Not stocked
    engine console×1
  • 101000085447
    $1.26
    hex screw - 1000085447×8
  • 111000015438Not stocked
    lock washer×8
  • 121000004321
    $44.81
    hydro.bearing - 1000004321×4
  • 131000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×7
  • 141000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×8
  • 151000015364Not stocked
    hex screw×1
  • 161000094974
    $0.70
    washer M10-DIN134 - 1000094974×1
  • 171000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×1
  • 181000015364Not stocked
    hex screw×4
  • 191000082678
    $1.36
    NORTHLOCK DISC - 1000082678×4
  • 201000064990Not stocked
    earth strap×1
