SPARE PARTS LIST 2702RD SP

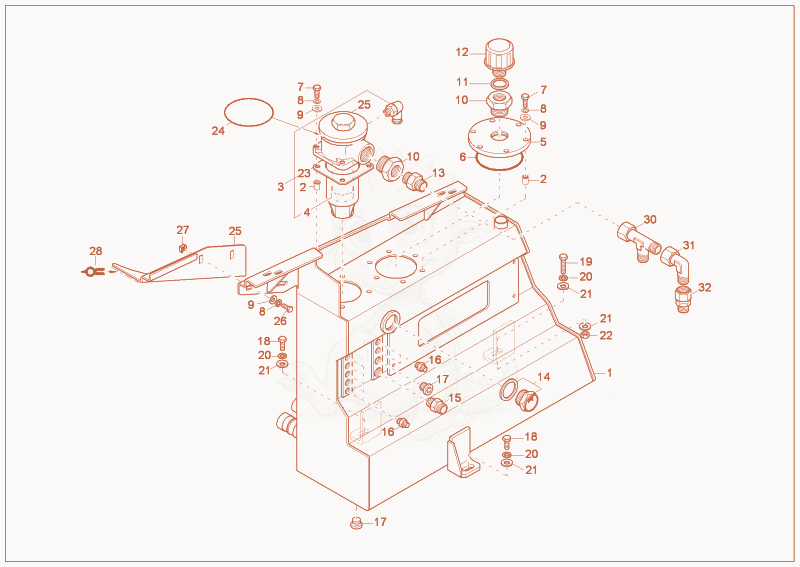

2702RD hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson 2702RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069896Not stocked
    hydraulic tank×1
  • 21000082550Not stocked
    blind rivet nut×10
  • 31000004582
    $313.22
    FILTER-REFLUX - 1000004582×1
  • 41000004583Not stocked
    reflux filter insert×1
  • 51000070990Not stocked
    oil tank cap×1
  • 61000015679Not stocked
    o-ring×1
  • 71000015343Not stocked
    hex screw×10
  • 81000015437Not stocked
    lock washer×12
  • 91000015431Not stocked
    washer×12
  • 101000015541
    $30.67
    WV08OMDA3C - 1000015541×2
  • 111000015666Not stocked
    seal ring×1
  • 121000012522Not stocked
    venting filter×1
  • 131000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×1
  • 141000002989Not stocked
    view glass×1
  • 151000082865
    $12.60
    GE22LR1/2EDOMDA3C - 1000082865×1
  • 161000015488Not stocked
    screw joint×7
  • 171000020797Not stocked
    screw joint×2
  • 181000015364Not stocked
    hex screw×2
  • 191000085414
    $0.98
    hex screw - 1000085414×3
  • 201000015438Not stocked
    lock washer×3
  • 211000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 221000015407Not stocked
    hexagon nut×1
  • 231000004584Not stocked
    pernunan seal×1
  • 241000004585Not stocked
    o-ring×1
  • 251000069911Not stocked
    seal plate×1
  • 261000019136Not stocked
    hex screw×2
  • 271000015425Not stocked
    cage nut×2
  • 281000017845Not stocked
    rubber profile×1
  • 291000069517Not stocked
    cover back flow filter×1
  • 301000085045
    $31.31
    EL22LOMDA3C - 1000085045×1
  • 311000020261
    $17.85
    EW22LOMD - 1000020261×1
  • 321000021218Not stocked
    screw joint×1
