3001 Dumper

3001 rear part frame 2 Diagram

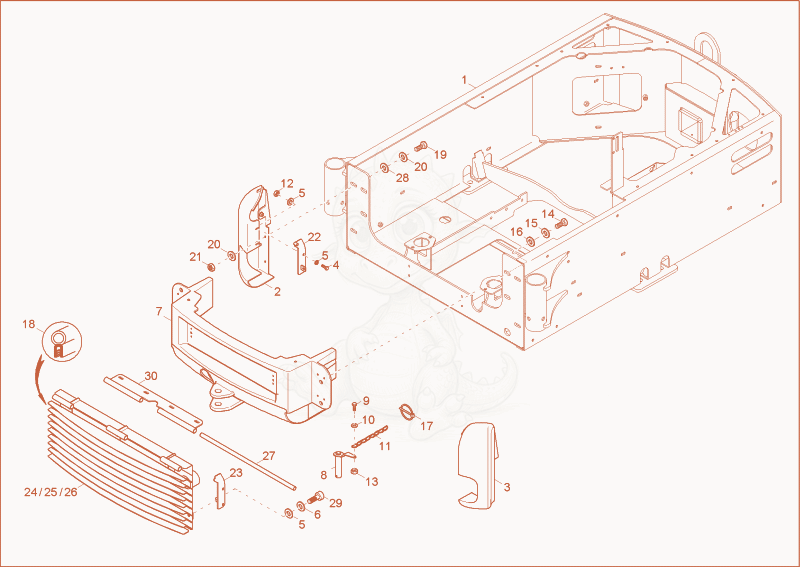

Exploded parts diagram of the rear part frame 2 of a Wacker Neuson 3001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074953Not stocked
    rear frame×1
  • 21000074943
    $1,171.62
    Castironedge 1000074943×1
  • 31000074945
    $710.07
    Castironedge 1000074945×1
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 51000094974
    $0.70
    washer M10-DIN134 - 1000094974×10
  • 61000015438Not stocked
    lock washer×2
  • 71000074944Not stocked
    middle piece cast iron×1
  • 81000075190
    $10.85
    TOWING PIN - 1000075190×1
  • 91000018400Not stocked
    hex screw×1
  • 101000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×1
  • 111000097224
    $40.66
    CHAIN - 1000097224×0.3
  • 121000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 131000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 141000015404Not stocked
    hex screw×4
  • 151000015439Not stocked
    lock washer×4
  • 161000082679
    $0.75
    Washer M16-DIN134 - 1000082679×4
  • 171000015457Not stocked
    cotter pin×1
  • 181000017833Not stocked
    rubber profile×0.2
  • 191000085440
    $1.68
    DIN933 M12x45 10.9 A2C - 1000085440×4
  • 201000015443Not stocked
    lock washer×8
  • 211000082563
    $0.90
    HEXAGON NUT - 1000082563×4
  • 221000073364Not stocked
    support×1
  • 231000073363Not stocked
    support×1
  • 241000143559Not stocked
    airoutput screen×1
  • 251000106746Not stocked
    airoutput screen×1
  • 261000073365Not stocked
    airoutput screen×1
  • 271000075187
    $8.61
    HINGE PIN - 1000075187×1
  • 281000082669
    $1.42
    WASHER - 1000082669×4
  • 291000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • 301000075180
    $77.37
    Hinge 1000075180×1
