SPARE PARTS LIST 3402RD SP

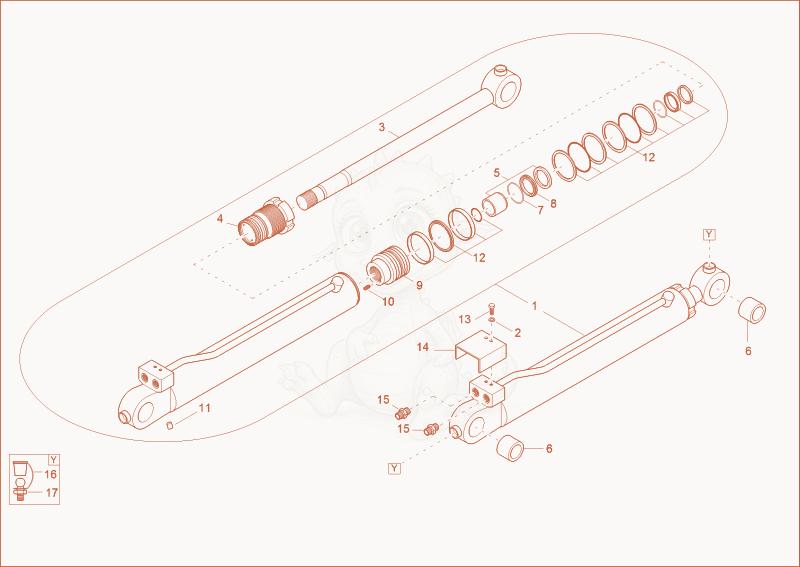

3402RD dipper arm cylinder Diagram
- 11000005113Not stockeddipper arm cylinder×1
- spring washer - 1000082617×2
- 31000004780Not stockedpiston rod×1
- 41000070041Not stockedguide bushing×1
- 51000146096Not stockedshock absorber×1
- 61000112796Not stockedbushing×2
- 71000015467Not stockedlock ring×1
- 81000004685Not stockedfastenring×1
- 91000093809Not stockedpiston×1
- 101000082320Not stockedthread pin×1
- 111000082822Not stockedballexpander×1
- 121000004705Not stockedcylinder seal kit×1
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×2
- 141000070437Not stockedprotection plate tick ram×1
- 151000015494Not stockedscrew joint×2
- 161000015480Not stockedcap grease nipple×2
- 171000015475Not stockedgrease nipple×2
