SPARE PARTS LIST 3500/6002 SP

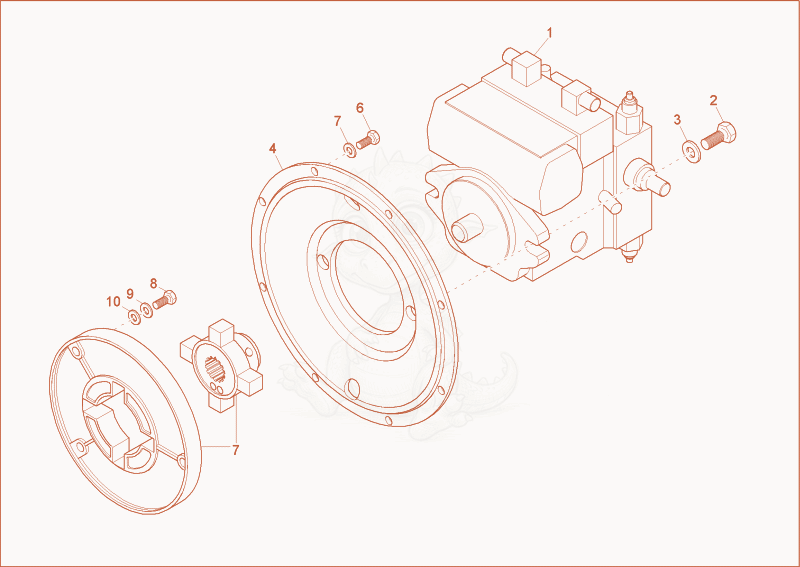

3500/6002 HYDRAULIC PUMP DRIVE Diagram

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 3500/6002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000062272Not stocked
    displacement pump×1
  • 21000085429
    $1.71
    HEX SCREW - 1000085429×2
  • 31000094994
    $3.70
    nordock washer NL16x30,7 - 1000094994×2
  • 41000003544Not stocked
    bulb×1
  • 51000082367Not stocked
    hex screw×8
  • 61000015438Not stocked
    lock washer×8
  • 71000003649Not stocked
    coupling×1
  • 81000015347Not stocked
    hex screw×3
  • 91000082609
    $0.73
    lock washer - 1000082609×3
  • 101000082638
    $0.73
    washer 13 -DIN134 - 1000082638×3
  • 111000081661
    $129.22
    SCREW LOCKING - 1000081661×1
