SPARE PARTS LIST 6000/9002 SP

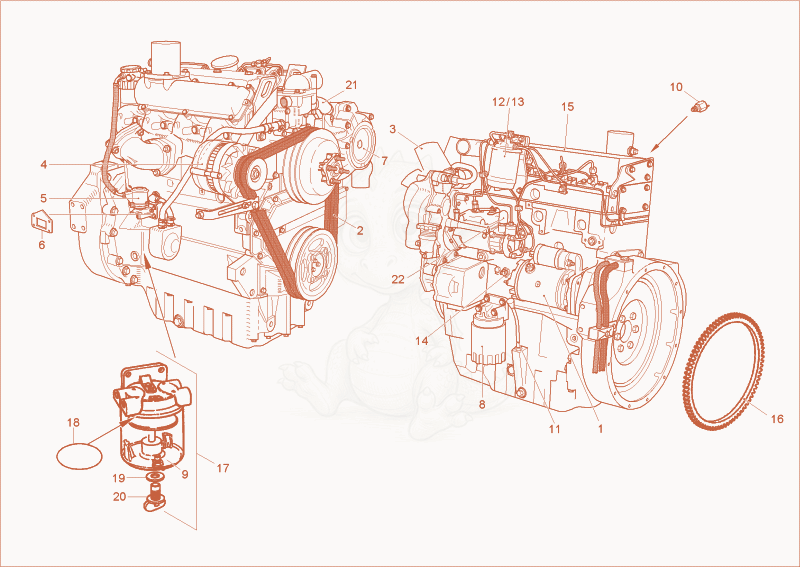

6000/9002 diesel engine Diagram

Exploded parts diagram of the diesel engine of a Wacker Neuson 6000/9002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000003835
    $370.91
    starter - 1000003835×1
  • 21000003810Not stocked
    v-belt×2
  • 31000004883Not stocked
    blower×1
  • 41000003837Not stocked
    generator×1
  • 51000115170Not stocked
    fuel pump×1
  • 61000115171Not stocked
    seal×1
  • 71000019090Not stocked
    water pump×1
  • 81000000322Not stocked
    filter cartridge×1
  • 91000004983Not stocked
    view glass×1
  • 101000013341Not stocked
    temperature sensor×1
  • 111000130496Not stocked
    oildip stick×1
  • 121000003809Not stocked
    mug×1
  • 131000000290Not stocked
    fuel filter×1
  • 141000004895Not stocked
    oil pressure switch×1
  • 151000170782Not stocked
    valve cover×1
  • 161000003833Not stocked
    ring gear×1
  • 171000005033Not stocked
    Water Seperator×1
  • 181000005020Not stocked
    seal ring×1
  • 191000115291Not stocked
    seal ring×1
  • 201000115290Not stocked
    plug×1
  • 211000058894Not stocked
    water hose×1
  • 221000003813Not stocked
    shut off solenoid×1
