Dumper 6001

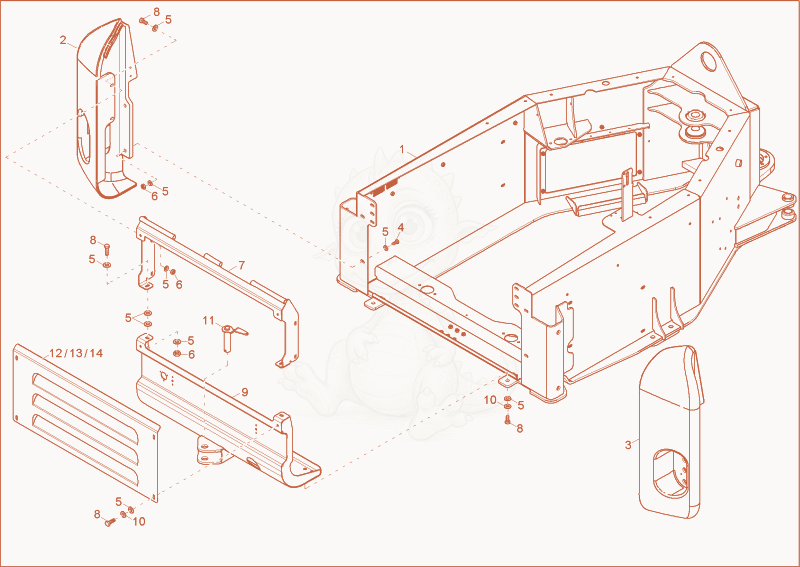

6001 REAR PART CHASSIS 2 Diagram

Exploded parts diagram of the REAR PART CHASSIS 2 of a Wacker Neuson 6001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000104055Not stocked
    rear frame×1
  • 21000074895Not stocked
    cast iron edge×1
  • 31000074896Not stocked
    cast iron edge×1
  • 41000085413
    $1.20
    hex screw - 1000085413×4
  • 51000094974
    $0.70
    washer M10-DIN134 - 1000094974×36
  • 61000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×10
  • 71000104125Not stocked
    support×1
  • 81000015364Not stocked
    hex screw×18
  • 91000106639Not stocked
    connection plate×1
  • 101000015438Not stocked
    lock washer×12
  • 111000075190
    $10.85
    TOWING PIN - 1000075190×1
  • 121000143578Not stocked
    rear plate×1
  • 131000104090Not stocked
    rear plate×1
  • 141000143521Not stocked
    rear plate×1
