Excavator 8003

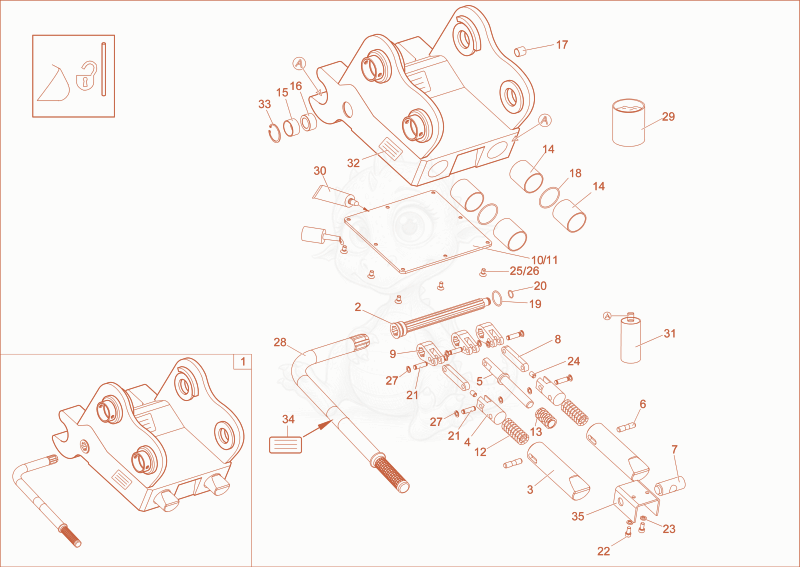

8003 QUICK-HITCH COUPLER Diagram
- 11000075776Not stockedQuick-hitch coupler cpl. (LP)×1
- Gearshift shaft - 1000084976×1
- Pin 1000084977×2
- pressure piece - 1000084978×2
- leading - 1000084979×1
- 61000084980Not stockedpin×2
- swivel plug - 1000084981×1
- Lever - 1000084982×2
- coupling - 1000084983×3
- COVER - 1000128261×1
- COVER - 1000063542×1
- pressure spring - 1000084985×2
- pressure spring - 1000084986×1
- 141000084987Not stockedbushing×4
- bushing - 1000084988×1
- 161000084989Not stockedbushing×1
- 171000084990Not stockedbushing×1
- O-RING - 1000063543×2
- O-ring - 1000084991×1
- 201000084992Not stockedbushing×1
- Pin - 1000084993×5
- 221000063545Not stockedsocket cap screw×2
- 231000063546Not stockedspring washer×2
- 241000063547Not stockedthread pin×2
- 251000063548Not stockedcountersunk screw×8
- 261000128263Not stockedtorx screw×8
- lock ring - 1000084995×10
- 281000084994Not stockedspanner×1
- grease - 1000063549×1
- 301000063550Not stockedsealing compound×1
- spray - 1000063555×1
- 321000063552Not stockedindication label×1
- lock ring - 1000085638×1
- 341000063554Not stockedindication label×1
- bearing support - 1000084984×1
