AP2560e

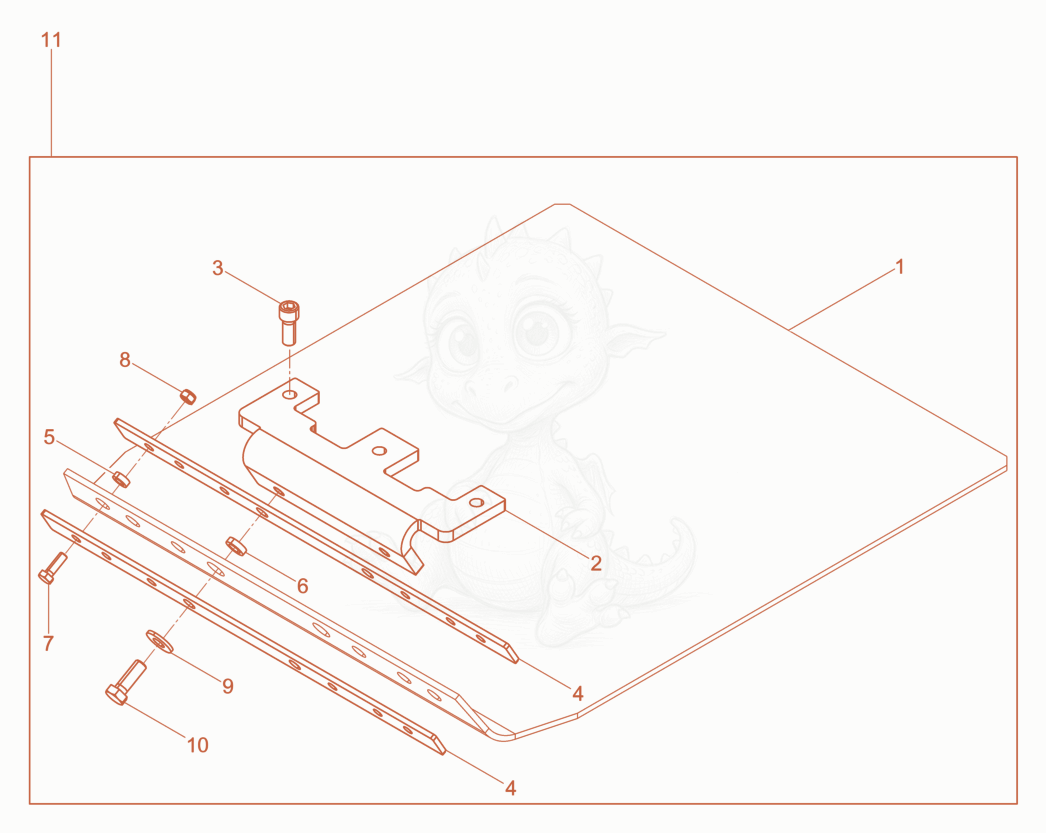

AP2560E Urethane Pad Kit PGV AP2560e Diagram

Exploded parts diagram of the Urethane Pad Kit PGV AP2560e of a Wacker Neuson AP2560E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100055489Not stocked
    urethane plate×1
  • 25100048480Not stocked
    Angle×1
  • 35000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×3
  • 45000047573Not stocked
    Bar×2
  • 55100059034Not stocked
    Bush×2
  • 65100059033Not stocked
    Bush×6
  • 75000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×6
  • 85000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×6
  • 95000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
  • 105000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×2
  • 115100048482Not stocked
    Urethane Pad Kit PGV AP2560e×1
