APT4T Pump, Surge Brake

APT4T Engine/Radiator Diagram

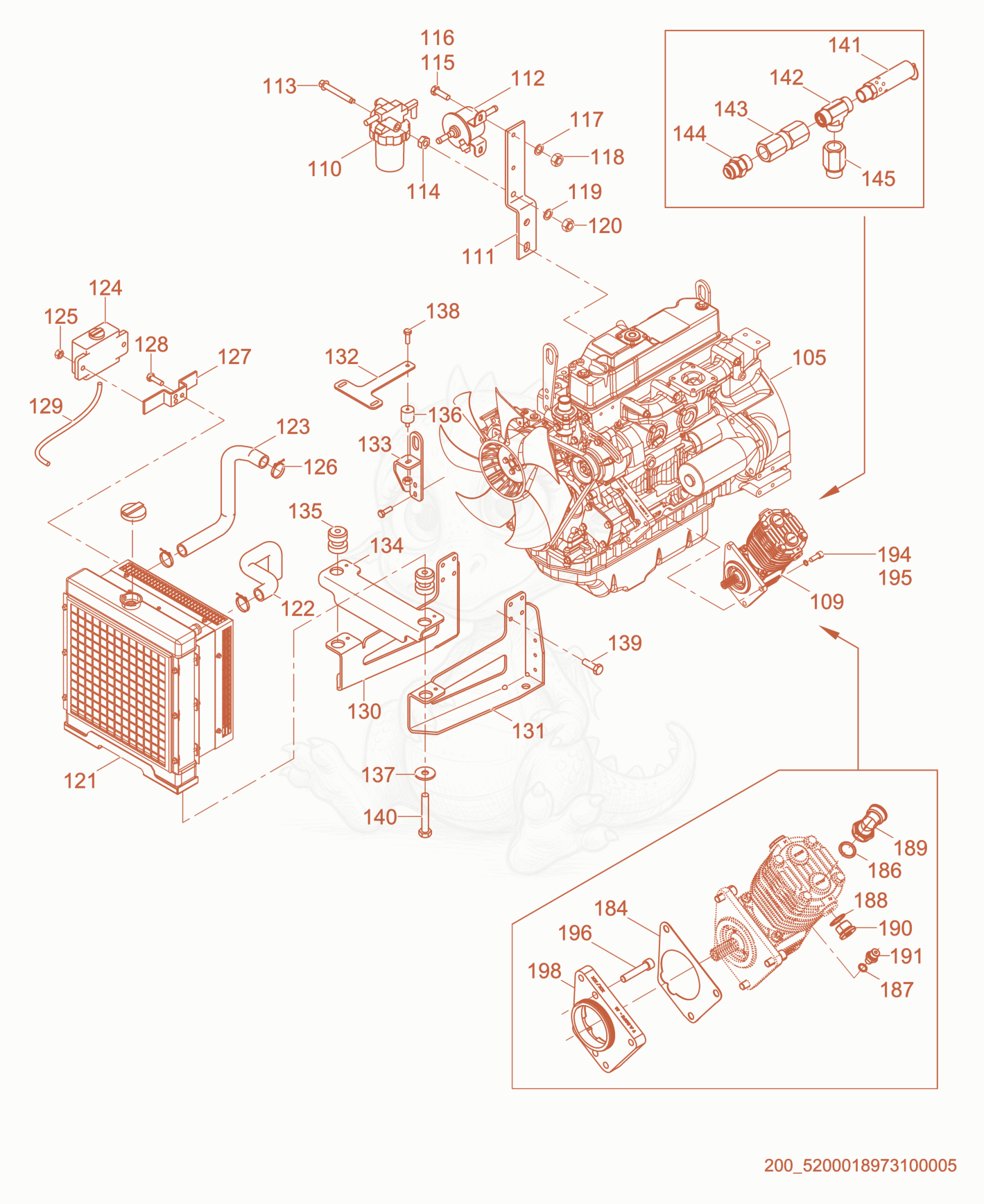

Exploded parts diagram of the Engine/Radiator of a Wacker Neuson APT4T, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1055200020430Not stocked
    Engine-Yanmar×1
  • 1095200021835Not stocked
    Air compressor×1
  • 1105200021617Not stocked
    Water separator×1
  • 1115200021834Not stocked
    Bracket×1
  • 1125200021618Not stocked
    Fuel pump×1
  • 1135200021602Not stocked
    Screw×2
  • 1145200021833Not stocked
    Spacer×1
  • 1155000011470
    $0.11
    SCREW M6 X 20 HX.HD. - 5000011470×2
  • 1165000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 1175000010649
    $0.07
    WASHER-LOCK B6 - 5000010649×2
  • 1185000021679
    $0.22
    NUT-LOCK VM6 HEX - 5000021679×2
  • 1195000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×1
  • 1205000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×1
  • 1215200021826Not stocked
    Radiator Kit×1
  • 1225200021827Not stocked
    Hose×1
  • 1235200021828Not stocked
    Hose×1
  • 1245200021829Not stocked
    Overflow bottle×1
  • 1255000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×1
  • 1265200021830Not stocked
    Hose clamp×4
  • 1275200021831Not stocked
    Mounting bracket×1
  • 1285000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×3
  • 1295200021832Not stocked
    Overflow hose×1
  • 1305200021817Not stocked
    Bracket×1
  • 1315200021819Not stocked
    Bracket×1
  • 1325200021820Not stocked
    Bracket×1
  • 1335200021821Not stocked
    Bracket×1
  • 1345200021822Not stocked
    Bracket×1
  • 1355200021823Not stocked
    Isolator pad×2
  • 1365200021824Not stocked
    Isolator pad×1
  • 1375200021825Not stocked
    Snubber washer×2
  • 1385000163948
    $0.35
    SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×1
  • 1395200021818Not stocked
    Bolt×8
  • 1405000011305
    $1.33
    SCREW M12 X 70 HX.HD. - 5000011305×2
  • 1415200021759Not stocked
    Valve×1
  • 1425100018119
    $169.21
    FITTING-TEE,#10X10 - 5100018119×1
  • 1435200021764Not stocked
    Check valve×1
  • 1445200021666Not stocked
    Adapter×1
  • 1455100018160
    $60.80
    FITTING-ADAPTER M22 x 1/2 FNPT - 5100018160×1
  • 1845100040901
    $72.80
    GASKET-COMPRESSOR - 5100040901×1
  • 1865100040903
    $19.59
    O-RING - 5100040903×1
  • 1875100040904
    $21.18
    SEAL - 5100040904×1
  • 1885100040905
    $19.33
    WASHER-SEALING - 5100040905×2
  • 1895100040906
    $144.74
    FITTING-ELBOW, M22 X 90 - 5100040906×1
  • 1905100040907
    $47.65
    PLUG M22 - 5100040907×2
  • 1915100040908
    $41.28
    FITTING-ADAPTER, M10X1X1/4 BSP - 5100040908×1
  • 1945100040911
    $7.94
    WASHER-SPRING - 5100040911×3
  • 1955100040912
    $13.76
    SCREW-SOCKET HEAD, M10X25 - 5100040912×3
  • 1965100040913
    $15.36
    SCREW-SOCKET HEAD, M10X50 - 5100040913×2
  • 1985100040915
    $3,135.41
    FLANGE-ADAPTER MOUNTING - 5100040915×1
