APU3050e

APU3050E Drive System Diagram

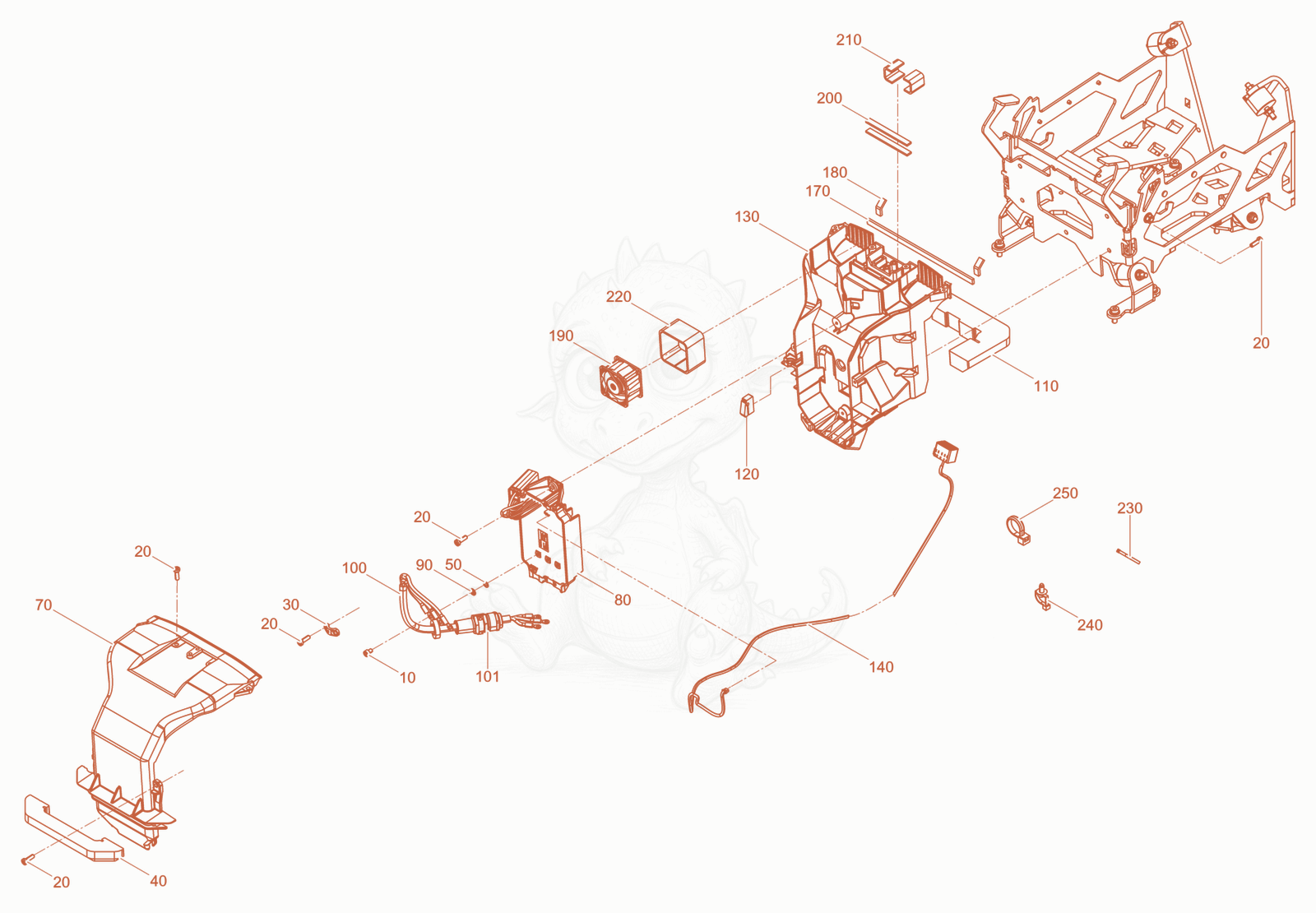

Exploded parts diagram of the Drive System of a Wacker Neuson APU3050E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000014425
    $2.06
    SCREW M6 X 8 SOC.HD. - 5000014425×3
  • 205100013871
    $1.51
    Oval head screw 6 x 20 - 5100013871×15
  • 305100000179
    $1.64
    Clamp - 5100000179×1
  • 405100065716
    $39.45
    Gasket front - 5100065716×1
  • 505000202098
    $2.12
    WASHER LOCK A6.4 - 5000202098×3
  • 705100065718
    $138.81
    Air ducting Cover - 5100065718×1
  • 805100065069
    $653.20
    Converter - 5100065069×1
  • 905000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×3
  • 1005100066494
    $145.61
    Cable - 5100066494×1
  • 1105100065717
    $53.99
    Gasket behind - 5100065717×1
  • 1205100067071
    $5.08
    Gasket (Cable) - 5100067071×1
  • 1305100065719
    $225.34
    Air ducting Support - 5100065719×1
  • 1405100064652
    $71.68
    Cable APU - 5100064652×1
  • 1705100067991
    $1.06
    Gasket 10x4 - 250 mm lg. (APU) - 5100067991×1
  • 1805100067989
    $0.40
    Gasket 10x4 - 30 mm lg. (APU) - 5100067989×2
  • 1905100065176
    $258.90
    Ventilator 60x60x38 - 5100065176×2
  • 1915000201171
    $27.19
    CONNECTOR - 5000201171×1
  • 2005100067822
    $2.12
    Gasket 10x4 - 98 mm lg. (APU) - 5100067822×2
  • 2105100067824
    $0.53
    Gasket 30x3 - 68 mm lg. (APU) - 5100067824×3
  • 2205100067823
    $2.12
    Gasket 40x3 - 230 mm lg. (APU) - 5100067823×2
  • 2305000206683
    $0.57
    CABLE-YARN T30L - 5000206683×1
  • 2405100011341
    $1.90
    Tie cable - 5100011341×3
  • 2505000038489
    $0.21
    CABLE-TIE 4.0 X 130MM,NO MOUNT - 5000038489×1
