Vibroplate APU KMAT

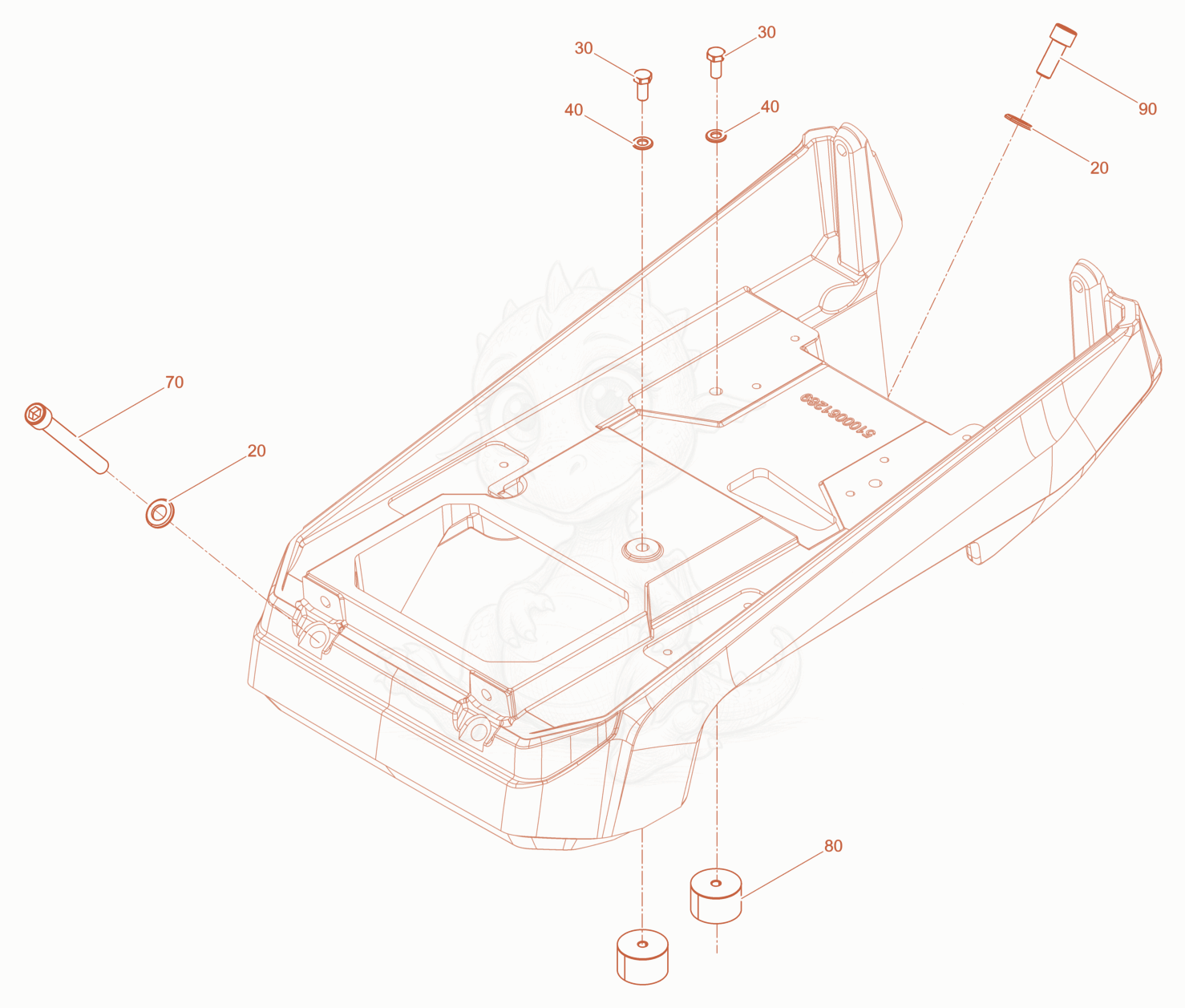

APUKMAT Upper mass basis Diagram

Exploded parts diagram of the Upper mass basis of a Wacker Neuson APUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000010620
    $0.26
    WASHER B13 FLAT - 5000010620×4
  • 305000013551
    $0.29
    SCREW M8 X 18 HX.HD. - 5000013551×4
  • 405000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 705100065172
    $3.05
    screw M12x105 - 5100065172×2
  • 805000201017
    $8.05
    SHOCKMOUNT - 5000201017×4
  • 905000011530Not stocked
    Cheese head screw×2
