External Vib. AR 36/6/042LBV

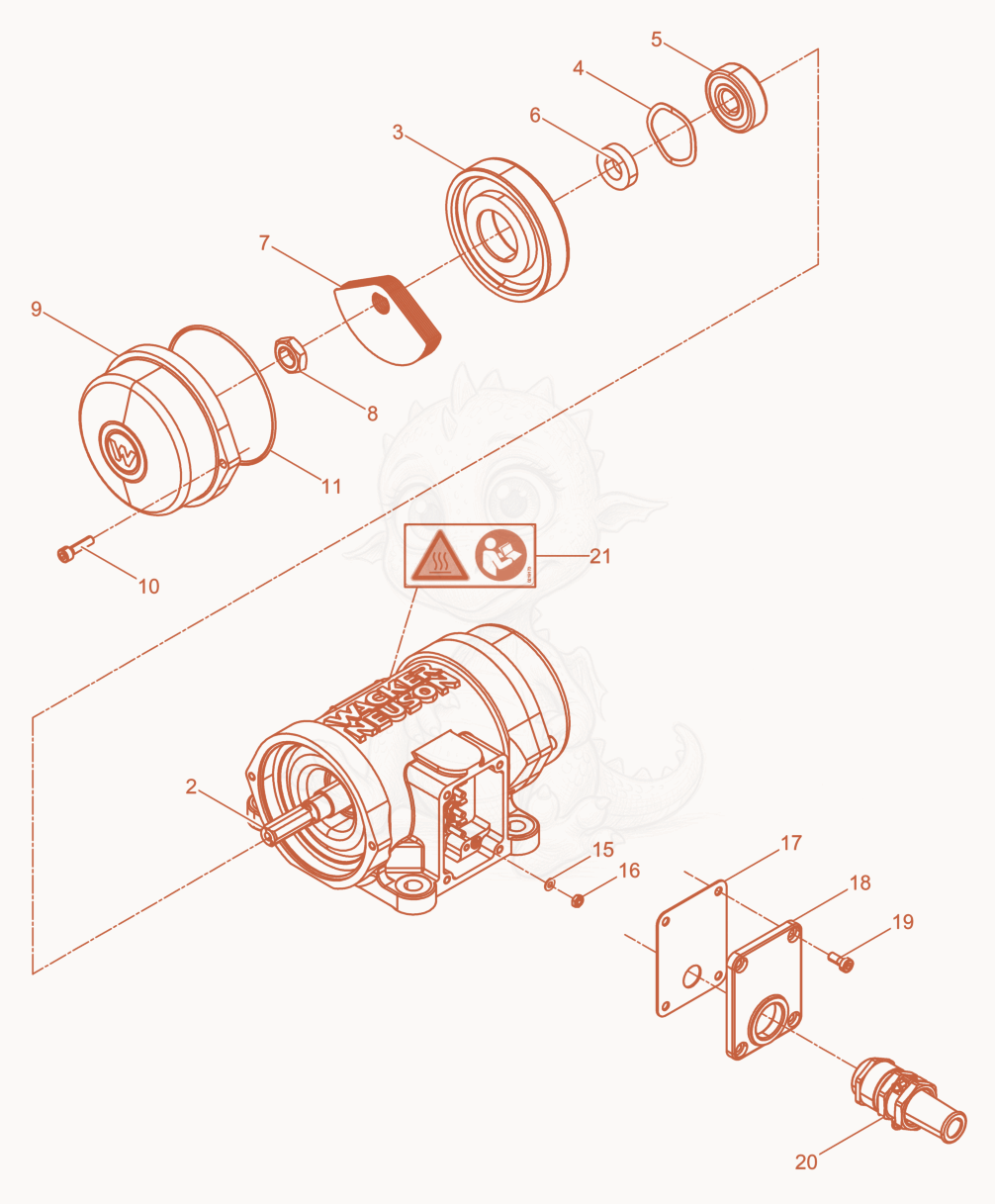

AR36/6/042LBV External Vibrator cpl. Diagram
- ARMATURE - 5000129134×1
- BRACKET-BEARING - 5000127786×2
- WASHER-SPRING - 5000201286×2
- BEARING-RADIAL BALL,6302 - 5000063223×2
- DISC - 5000129567×2
- WEIGHT - 5000127791×16
- 85000033351Not stockedHexagon nut×2
- Bonnet - 5000218724×2
- SCREW M5 X 20 SOC.HD. - 5000017908×4
- O-Ring - 5000064674×2
- WASHER B4.3 MS,FLAT - 5000012642×3
- NUT M4 MS,HEX. - 5000013178×3
- GASKET - 5000127790×1
- Cover - 5000219107×1
- SCREW M5 X 12 SOC.HD. - 5000095509×4
- SCREW-CONNECTION - 5000201170×1
- Label - 5000219173×1
