AR43/3/230 v

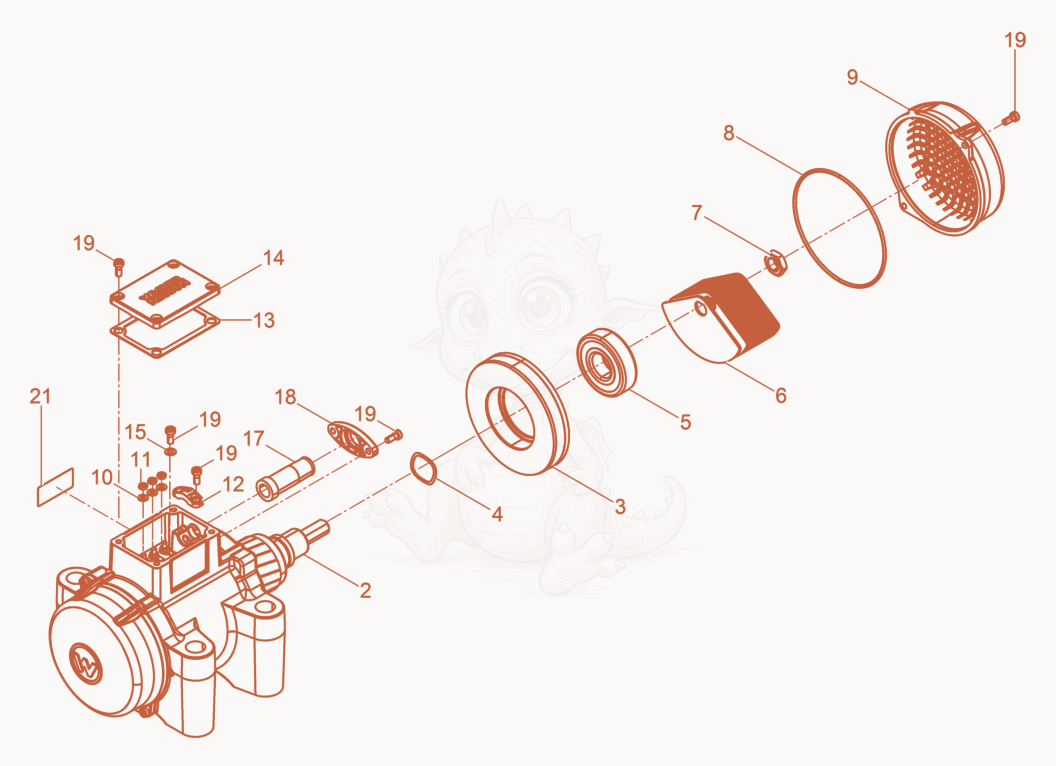

AR43/3/230V External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR43/3/230V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000010618
    $0.28
    WASHER B17 FLAT - 5000010618×4
  • 25100003111Not stocked
    Motor armature×1
  • 35100002922Not stocked
    Bearing bracket×2
  • 45100004137
    $0.84
    Shim 26,5x31,7x0,4 - 5100004137×1
  • 65100002940Not stocked
    Eccentric weight×44
  • 75000033351Not stocked
    Hexagon nut×2
  • 85100004139Not stocked
    O-ring×2
  • 95100004554
    $47.95
    Cover - 5100004554×2
  • 105000209458
    $0.10
    Washer - 5000209458×3
  • 115000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×3
  • 125000106220
    $1.79
    Clamp - 5000106220×1
  • 135100001541
    $5.30
    Gasket - 5100001541×1
  • 145100001542
    $25.18
    Cover - 5100001542×1
  • 155000201230
    $1.33
    WASHER-LOCK,TOOTHED - 5000201230×1
  • 175100042134
    $8.31
    Cable bushing - 5100042134×1
  • 185100002084
    $7.33
    screw connection - 5100002084×1
  • 195000095509
    $0.31
    SCREW M5 X 12 SOC.HD. - 5000095509×13
  • 215000219173
    $10.45
    Label - 5000219173×1
