External Vib. AR 51/3,6/440

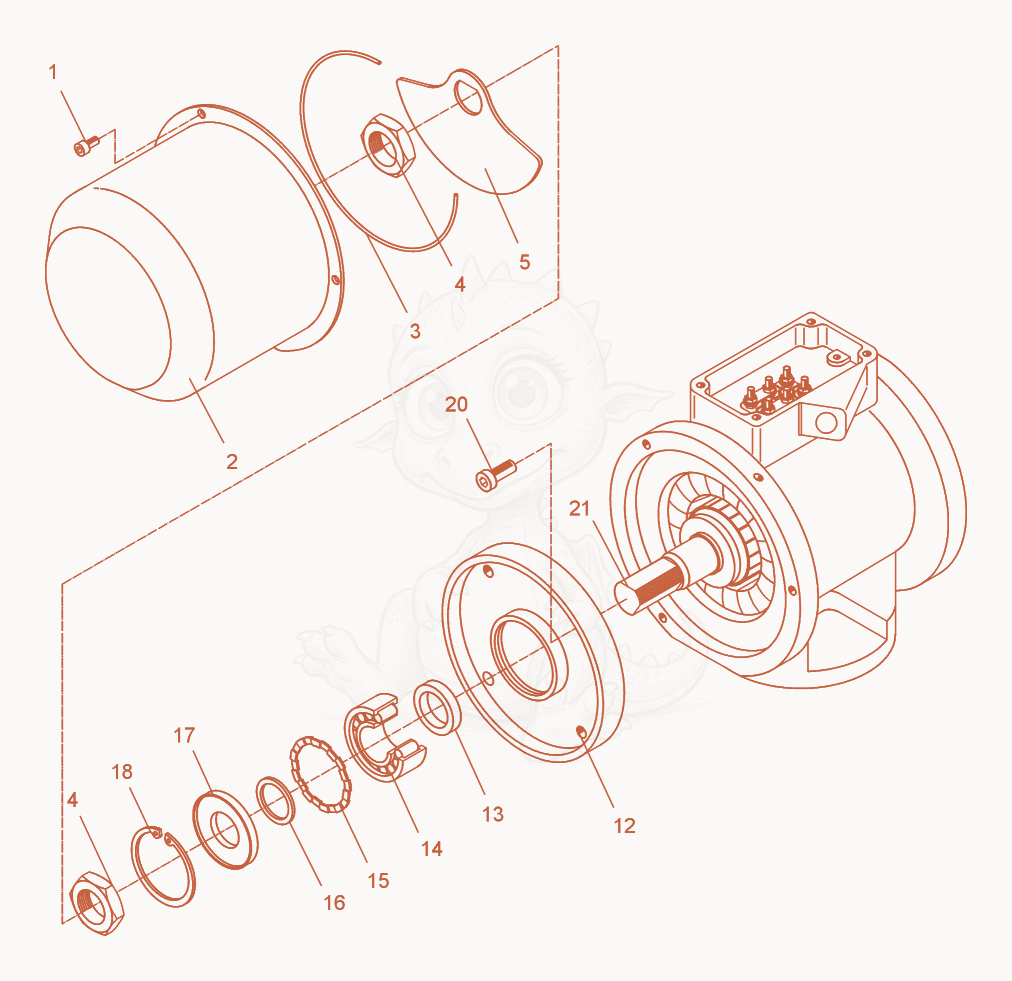

AR51/3,6/440 External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR51/3,6/440, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000024617
    $0.22
    SCREW M5 X 10 SOC.HD. - 5000024617×6
  • 25000069303
    $131.53
    X-5000219020 COVER - 5000069303×2
  • 35000069617
    $1.86
    O-Ring - 5000069617×2
  • 45000010820
    $4.07
    NUT M24 HEX.JAM - 5000010820×4
  • 55000034236
    $7.56
    WEIGHT-ECCENTRIC DRIVE,2.0 MM - 5000034236×20
  • 125000067930
    $183.39
    BRACKET-BEARING SUPPORT - 5000067930×2
  • 135000067915
    $27.76
    RING-INTERMEDIARY - 5000067915×2
  • 145000065842
    $72.29
    BEARING-CYL.ROLLER,NJ2205 - 5000065842×2
  • 155000069297
    $6.90
    DISC - 5000069297×2
  • 165002004794
    $0.92
    RING-BACKUP 25 X 35 X 2 D988 - 5002004794×2
  • 175000069296
    $9.77
    SHIM-SEALING MATERIAL - 5000069296×2
  • 185002001047
    $1.10
    RET.RING-INT 52MMX2MM, - 5002001047×2
  • 205000011263
    $8.06
    SCREW M8 X 20 SOC.HD. - 5000011263×4
  • 215000067921
    $146.40
    ROTOR - 5000067921×1
