AR 51/4.5/042 External Vibrator

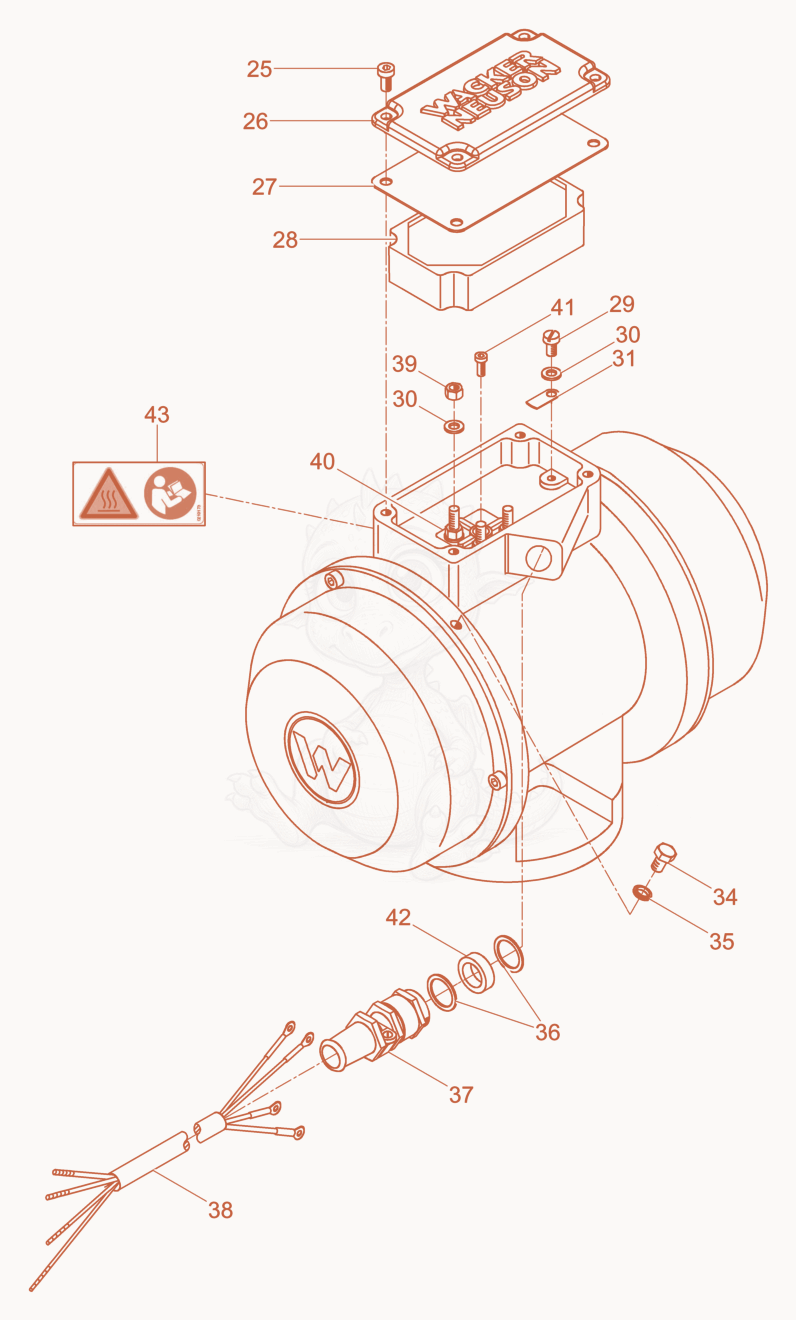

AR51/4,5/042 External Vibrator cpl. Diagram
- SCREW M5 X 12 SOC.HD. - 5000095509×4
- Cover - 5000067945×1
- Seal - 5000068755×1
- MOUNT-RUBBER - 5000069291×1
- WASHER B5.3 MS,FLAT - 5000012643×6
- SCREW M6 X 8 HX.HD. - 5000013550×2
- SEAL-RING 6.7 X 10 X 1 - 5000021670×2
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×2
- SCREW-CONNECTION - 5000038054×1
- CABLE-SUPPLY - 5000094676×1
- NUT-LOCK,M5 - 5000012997×6
- TERMINAL-BOARD - 5000069298×1
- SCREW M4 X 12 SOC.HD. - 5000011571×1
- Gasket - 5002006450×1
- Label - 5000219173×1
