AR75/1,5/400

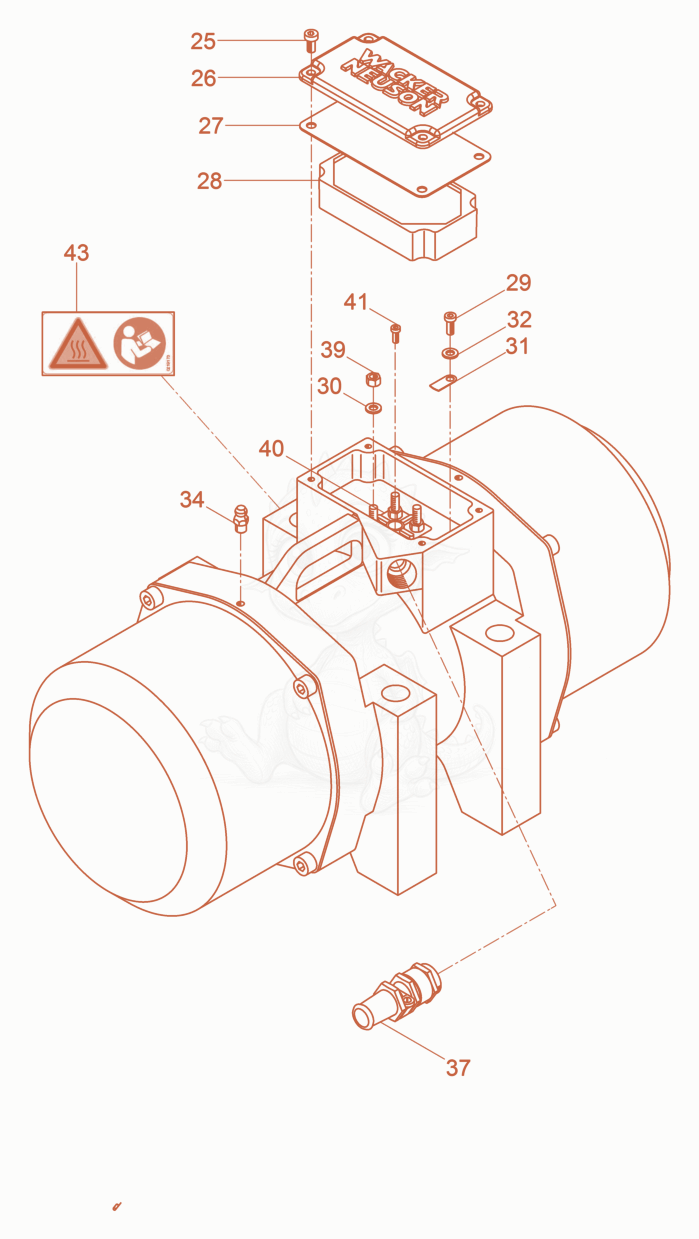

AR75/1,5/400 External Vibrator cpl. Diagram
- SCREW M5 X 12 SOC.HD. - 5000095509×4
- Cover - 5000067945×1
- Seal - 5000068755×1
- MOUNT-RUBBER - 5000069291×1
- SCREW M5 X 12 SOC.HD. - 5000095509×1
- WASHER B5.3 MS,FLAT - 5000012643×6
- LABEL-GROUND SYMBOL - 5002003378×1
- WASHER-LOCK,TOOTHED - 5000201230×1
- FITTING-GREASE AM6 - 5002004705×2
- SCREW-CONNECTION - 5000201170×1
- NUT-LOCK,M5 - 5000012997×6
- TERMINAL-BOARD - 5000069298×1
- SCREW M4 X 12 SOC.HD. - 5000011571×1
- Label - 5000219173×1
