Ext. Vib. AR 75/3,6/230/400

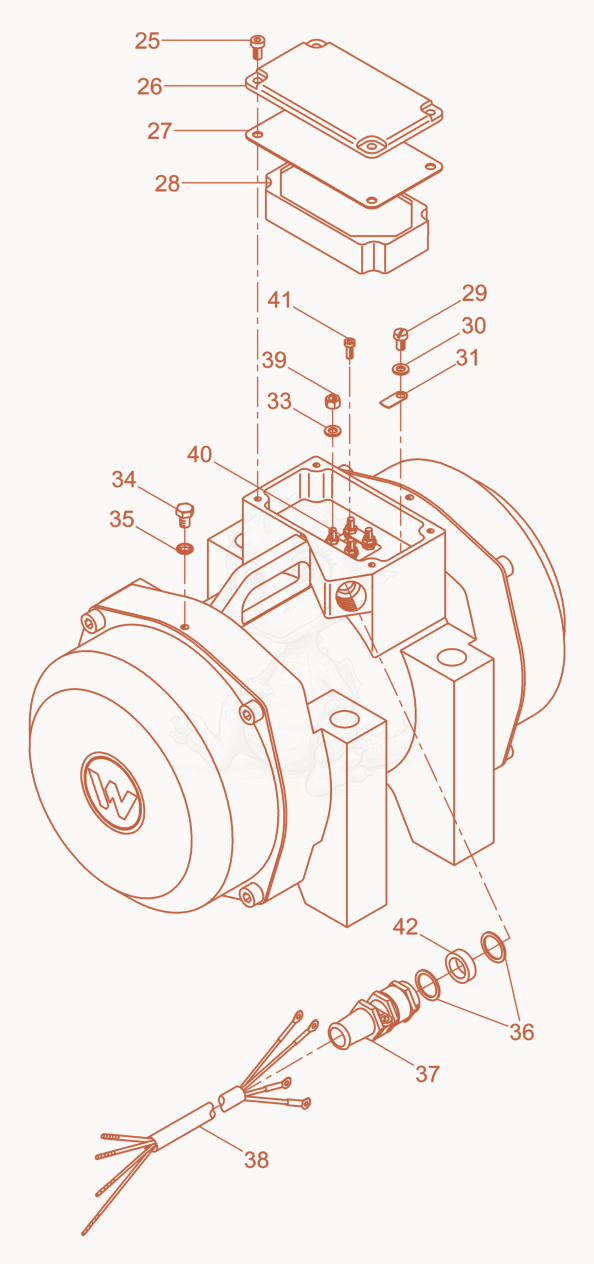

AR75/3,6/230/400 External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR75/3,6/230/400, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000095509
    $0.31
    SCREW M5 X 12 SOC.HD. - 5000095509×4
  • 265000067945
    $59.91
    Cover - 5000067945×1
  • 275000068755
    $6.06
    Seal - 5000068755×1
  • 285000097941
    $38.58
    MOUNT-RUBBER - 5000097941×1
  • 295000013175
    $0.59
    SCREW M5 X 12 SOC.HD.CAP - 5000013175×1
  • 305000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×1
  • 315002003378
    $7.12
    LABEL-GROUND SYMBOL - 5002003378×1
  • 335000012642
    $0.13
    WASHER B4.3 MS,FLAT - 5000012642×9
  • 345000013550
    $0.40
    SCREW M6 X 8 HX.HD. - 5000013550×2
  • 355000021670
    $4.91
    SEAL-RING 6.7 X 10 X 1 - 5000021670×2
  • 365000201168
    $0.84
    RING-THRUST - 5000201168×2
  • 375000201170
    $28.66
    SCREW-CONNECTION - 5000201170×1
  • 385000097690
    $172.08
    CABLE-POWER SUPPLY - 5000097690×1
  • 395000013178
    $0.40
    NUT M4 MS,HEX. - 5000013178×12
  • 405002004537Not stocked
    Terminal board×1
  • 405000097670
    $0.88
    CONNECTOR-TERMINAL BOARD - 5000097670×3
  • 415000011571
    $0.06
    SCREW M4 X 12 SOC.HD. - 5000011571×1
  • 425000201169
    $1.60
    Gasket - 5000201169×1
